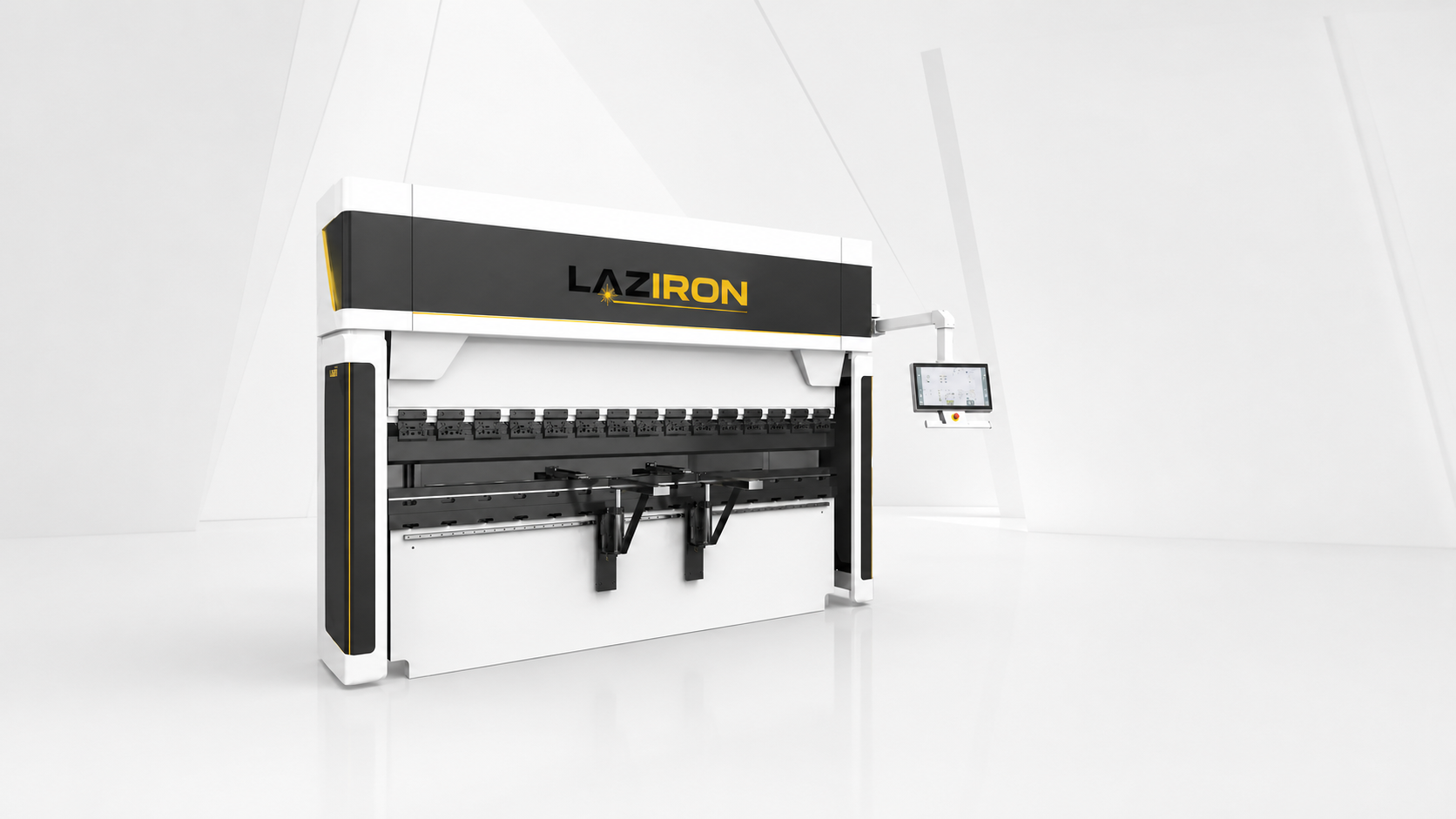

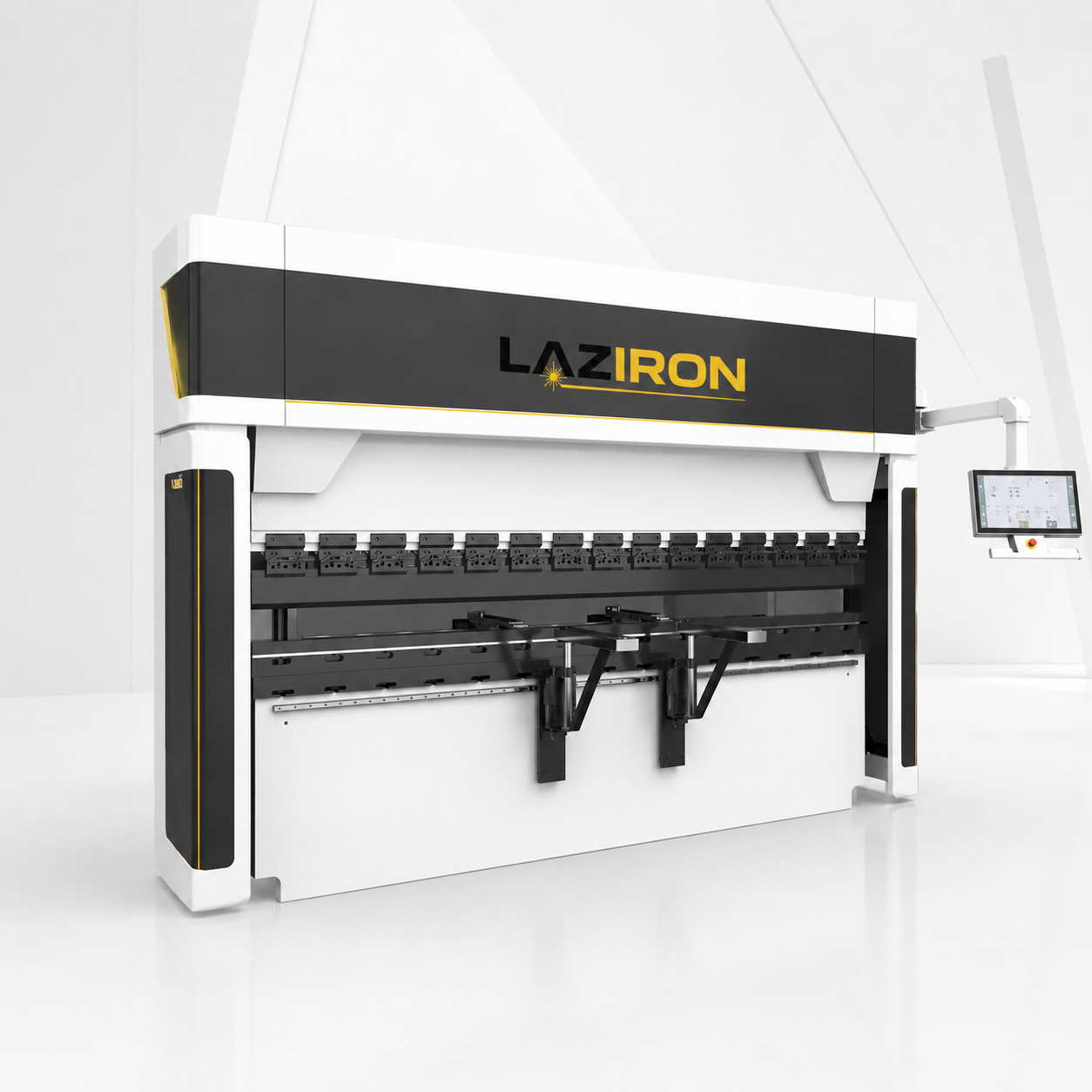

LAZIRON TPBS Hydraulic CNC Sheet Metal Press Brake: premium technology, industrial durability. Quality at an affordable price for European metalworking shops.
| Nominal bending force | 60 / 100 / 125 / 160 / 200 / 250 / 320 / 400 tons |
| Usable bending length | 2500 / 3200 / 4000 / 5000 mm |
| Ram stroke | 200-320 mm (depending on tonnage) |
| Drive system | Hydraulic with mechanical torsion bar |
| Positioning accuracy | ±0.05 mm |
| Number of NC axes | 4 (Y1, Y2, X, R) |
| Control system | DA-66T or Esa S630 (touchscreen) |
| Hydraulic pump | Bosch-Rexroth tandem |
| Hydraulic valves | Yuken or Bosch-Rexroth |
| Seals | Parker |
| Crowning compensation | Mechanical (standard) or hydraulic (optional) |
| Safety certification | EN 12622 (with Lazer Safe upgrade) |
The LAZIRON hydraulic CNC sheet metal press brake is the choice of workshops that want industrial bending power at an affordable entry price, without sacrificing modern CNC control. The mechanical torsion bar ensures perfect synchronization of the two hydraulic cylinders, eliminating the need for expensive servo-proportional systems.
With a bending force between 60 and 400 tons, a usable length of 2500-5000 mm and 4-axis CNC control, every LAZIRON TPBS hydraulic CNC sheet metal press brake offers an unbeatable price-to-quality ratio for workshops with typical production on commercial sheet metal: vehicle frames, lightweight metal structures, industrial panels and components for outdoor furniture.
The LAZIRON TPBS hydraulic CNC sheet metal press brake brings together in a single system the advantages that matter on the production line: repeatable accuracy, automated parameters, predictable operating costs and a long service life for critical components.
• Synchronizing mechanical torsion bar, eliminates synchronization losses between the two hydraulic cylinders, without expensive proportional valves, a solution tested for decades.
• Force 60-400 tons, length 2500-5000 mm, configurable in increments for applications ranging from medium metal furniture to lightweight construction structures.
• 4-axis CNC control (Y1, Y2, X, R), full programming of complex parts directly from DXF or library, with collision simulation.
• Reliable Bosch-Rexroth hydraulic system, tandem pump with Yuken or Rexroth proportional valves, Parker seals, a declared service life of over 20,000 hours.
• DA-66T or Esa S630 control system, touchscreen panel with 2D/3D graphic programming, tooling library and direct DXF import.
• Physical safety system + optional laser, standard photoelectric barriers plus optional upgrade to a Lazer Safe system for strict EN 12622 compliance.
• Entry price 25-35% lower than HPB, the optimal choice for workshops with typical production where ±0.05 mm accuracy is sufficient vs ±0.02 mm on HPB.
This LAZIRON hydraulic CNC sheet metal press brake is available in standardized configurations, with the choice made according to the application mix and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Nominal bending force | 60 / 100 / 125 / 160 / 200 / 250 / 320 / 400 tons |
| Usable bending length | 2500 / 3200 / 4000 / 5000 mm |
| Ram stroke | 200-320 mm (depending on tonnage) |
| Drive system | Hydraulic with mechanical torsion bar |
| Positioning accuracy | ±0.05 mm |
| Number of NC axes | 4 (Y1, Y2, X, R) |
| Control system | DA-66T or Esa S630 (touchscreen) |
| Hydraulic pump | Bosch-Rexroth tandem |
| Hydraulic valves | Yuken or Bosch-Rexroth |
| Seals | Parker |
| Crowning compensation | Mechanical (standard) or hydraulic (optional) |
| Safety certification | EN 12622 (with Lazer Safe upgrade) |
A LAZIRON hydraulic CNC sheet metal press brake is chosen by workshops with typical production where standard industrial accuracy is sufficient and where entry cost matters more than absolute precision.
Local metal fabrication shops and small-to-medium metal furniture factories use a single LAZIRON TPBS hydraulic CNC sheet metal press brake to bend commercial steel panels for technical cabinets, industrial shelving and components for lightweight metal construction. Typical volumes of 2-4 tons of bent sheet metal per month justify the investment within 20-30 months at the affordable entry price.
The second-tier automotive industry (chassis components, auxiliary frames, reinforcements), fitness equipment manufacturers and light agricultural machinery factories find in the hydraulic CNC sheet metal press brake the balance between sufficient accuracy and an affordable price. Bending subcontractors with clients in industries with wide tolerances (construction, commercial furniture) recover their investment quickly. Workshops in the industrial areas of Iasi, Cluj, Timisoara and Brasov frequently adopt this model as a first step toward CNC automation, thanks to the optimal ratio between entry price and professional capabilities.
With a force configurable between 60 and 400 tons, every LAZIRON LAZIRON TPBS hydraulic CNC sheet metal press brake covers the typical range of sheet metal for fabrication shops with medium production.
The classic hydraulic system with a mechanical torsion bar has been tested for decades in industry and offers maximum reliability with minimal replacement cost for wear parts.
Typical performance per material
• Carbon steel, max. thickness (with 400 t × 5000 mm): 16 mm
• Stainless steel 304/316: 12 mm
• Low-alloy steel S355: 14 mm
• Aluminum: 20 mm
The workflow of a LAZIRON LAZIRON TPBS hydraulic CNC sheet metal press brake is built for productive cycles with minimal intervention and simple maintenance.
1. The operator loads the program into the DA-66T or Esa S630 control directly from DXF.
2. The back gauge positions itself automatically on the calculated Y1, Y2, X coordinates.
3. The operator places the sheet on the die, supported on the auto-positioned back gauges.
4. The photoelectric barrier checks the work area and allows the cycle to start.
5. The mechanical torsion bar ensures perfect synchronization between the two hydraulic cylinders.
6. At the end, the system returns to zero for the next bend, with automatic adjustment of the back gauges.
For integration with other equipment in your workshop, the machine connects natively to the other LAZIRON equipment through a common MES.
What is the concrete difference between the TPBS hydraulic CNC sheet metal press brake and the HPB electro-hydraulic one?
TPBS uses a mechanical torsion bar for synchronization (a classic, reliable, low-cost system). HPB uses electric proportional servo-valves (superior accuracy ±0.02 mm vs ±0.05 mm, -35% consumption, price 25-35% higher). For workshops with production on commercial steel with wide tolerances, TPBS is the optimal ratio. For demanding parts with tight tolerances (medical, aerospace), HPB is required.
Why do the TPB (NC) and TPBS (CNC) have different prices?
The TPB (basic NC) has manual control or a basic NC system, without synchronized axes, for workshops with simple repetitive bends. The TPBS (full CNC) has control with 4 synchronized axes, graphic programming and simulation. The price difference is 30-40% in favor of the TPB for workshops with small-to-medium volumes and simple parts.
How long does a tooling change take?
A standard tooling change (top + bottom) takes 15-25 minutes manually with standard wrenches, or 3-5 minutes with a quick clamping system (optional, +8-12% cost). For workshops with more than 5 tooling changes per day, the quick system recovers its investment in 4-6 months from time saved alone.
What maintenance does the classic hydraulic system require?
Hydraulic oil changed annually or at 2500 hours (whichever comes first). Filters at 1500 hours. Parker seals inspected every six months. The torsion bar requires no preventive maintenance, only an annual visual inspection. Overall, the annual maintenance cost is 800-1500 EUR for a 200-300 ton press, compared to 1500-2500 EUR for an equivalent HPB electro-hydraulic press.
What delivery, installation and training are included?
Transport and commissioning are included in the purchase price across Romania, together with initial operator training. For other destinations, delivery is quoted per order.
The decision to invest in a hydraulic CNC sheet metal press brake is not made on the basis of technical specifications alone; what matters is how the equipment translates into real monthly cash-flow figures for your workshop.
For workshops that currently subcontract the equivalent operations at 2026 European market prices, bringing them in-house with a LAZIRON hydraulic CNC sheet metal press brake reduces the effective cost per operation by 50-70%. At a typical monthly volume run in-house instead of subcontracted, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: savings compared to subcontracting, offering services to local external clients at market prices, and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders or those with short deadlines.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can afford, even without the multi-million-euro CAPEX budgets of large factories.
• The most affordable entry price in the CNC range, the critical components (Bosch-Rexroth pump, Yuken valves, Parker seals, DA/Esa control) are those used by premium manufacturers, but the LAZIRON package costs 40-50% less.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, with a live test on your reference sheet metal and a complete acceptance report.
• European funding compatibility, meets the requirements of the NRRP, ERDF and national funds for CAPEX digitalization projects.
• Standards-compliant components, the hydraulic system meets the EN 12622 specifications of the European market leaders.
The critical components in the standard configuration meet the reliability specifications set by the laser industry leaders, with a declared lifetime of over 100,000 operating hours on the fiber source.
See the entire LAZIRON range of industrial equipment to compare models and request a personalized quote.
The LAZIRON TPBS hydraulic CNC sheet metal press brake turns the workshop's key operations into a real competitive advantage: premium-grade quality, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
