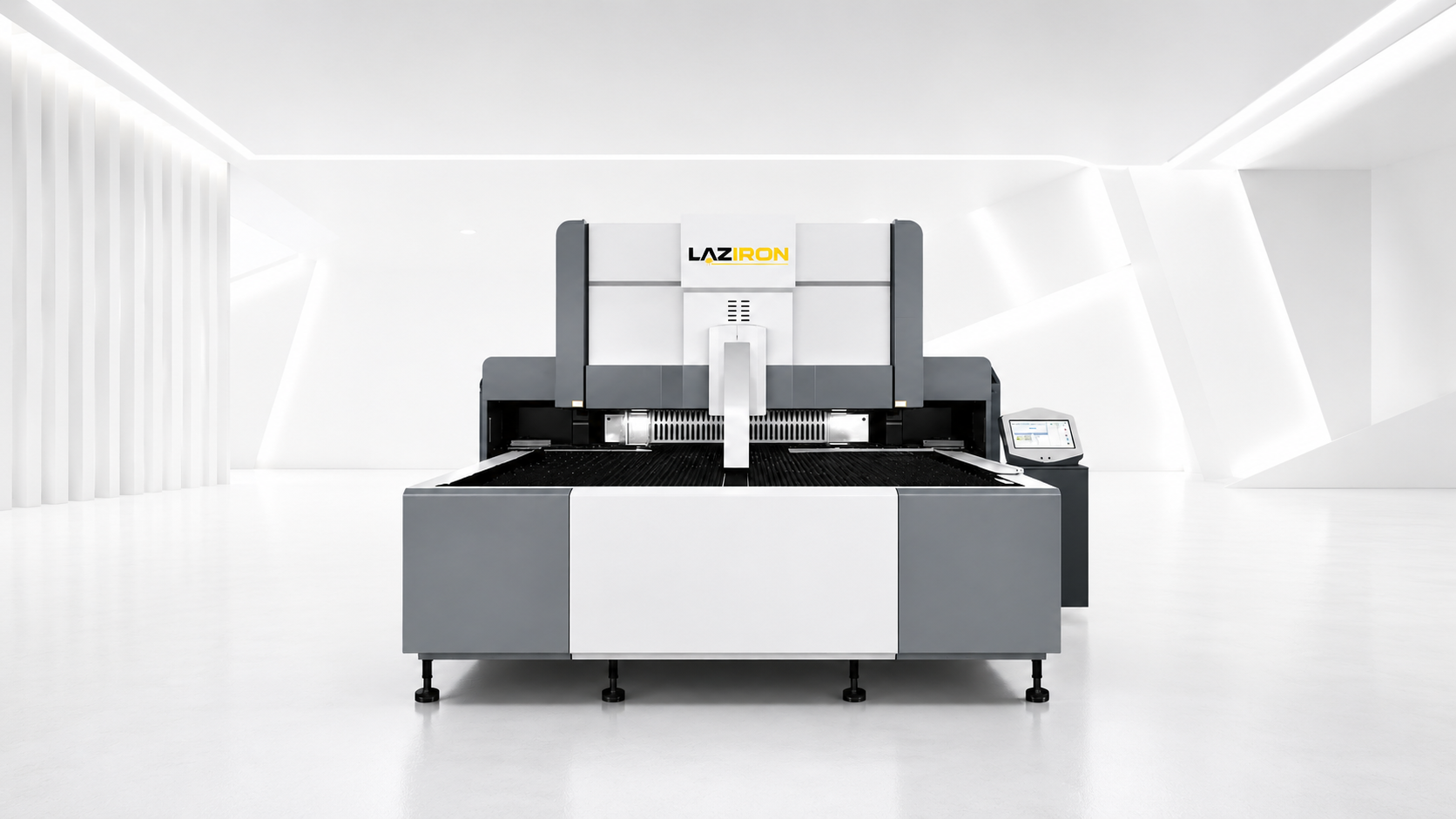

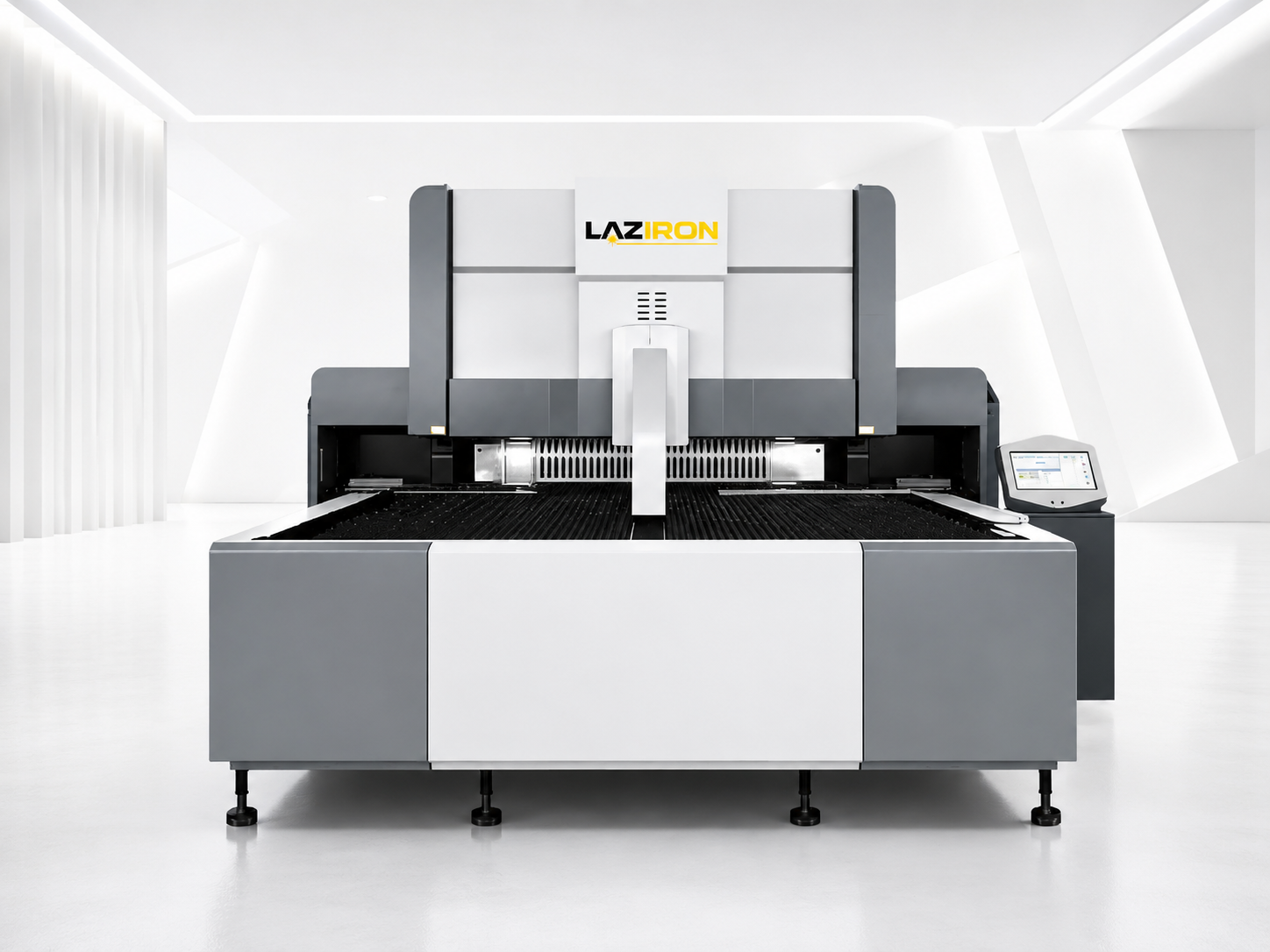

LAZIRON automatic panel bender for bending 0.5–4 mm panels, ±0.01 mm precision and tool-less changeover in under 20 s. 60-month warranty, installation included.
| Configurations | A1400 – A3000 |
| Maximum bending length | 1,400 – 3,000 mm |
| Maximum panel width | 1,250 mm |
| Maximum bending height | 110 – 170 mm |
| Minimum bending height | 4 mm |
| Minimum bending radius | 2 mm |
| Bending angle | < 180° |
| Sheet thickness | 0.5 – 4 mm |
| Positioning accuracy | ±0.01 mm |
| Tool change (tool-less) | < 20 s |
| Drive | full-electric servo |
| Motor power | 44.5 – 216 kW |
| Average working power | 2.2 – 10.8 kW |
| Control system | CNC, 15+ synchronized axes |
| Certifications | CE |
| Material | Indicative thickness |
| Steel (DC01 and similar) | 0.5 – 4 mm |
| Stainless steel | 0.5 – 3 mm |
| Aluminum | 0.5 – 4 mm |
| Painted / galvanized sheet | 0.5 – 3 mm |
A panel bender fully automates the bending of thin sheet panels, where a classic press brake requires long setup times and dies swapped for every profile. The LAZIRON model processes panels of 0.5–4 mm with a positioning accuracy of ±0.01 mm, using an intelligent 4-axis clamping system and tool-less changeover in less than 20 seconds. It is built with components on a par with major manufacturers, CNC control, full-electric servo drive and a robust anti-vibration frame.
On the shop floor, this panel bender replaces step-by-step manual bending and repeated die adjustments, consolidating the production of varied panels into a single automated workstation. It suits workshops delivering small and medium batches with many different configurations, see the range of bending equipment in the CNC press brake and panel bender category.
• Tool-less changeover in under 20 seconds, a panel bender moves from one profile to another without swapping dies, so small batches and one-off parts no longer tie up production with long setups.
• ±0.01 mm positioning accuracy, the 4-axis system repeats the same angle panel after panel, eliminating scrap and manual adjustments even on complex configurations.
• Bends in both directions, without repositioning the part, the upper and lower blades perform positive and negative bends through oscillation, so box-type profiles come out in a single clamping.
• Lower consumption with full-electric drive, the servo system recovers energy and draws up to 40% less power than an equivalent hydraulic press, with an average working power of just a few kW.
• Ideal for pre-finished sheet, the clamping system handles painted or galvanized panels without scratching the surface, a clear advantage for enclosures and visible panels.
• Offline programming, without stopping the machine, programs are prepared and simulated at the desk from STEP/DXF files, while the machine stays in production until the next job is ready to launch.
• Simple operation, operator-independent, automatic sequence control quickly brings a new operator to consistent results, useful for workshops with staff turnover.
• Premium technology at direct-manufacturer pricing, the same type of automatic panel bender, without the markup of expensive brands; you pay for the technology, not the name on the casing.
The LAZIRON panel bender configurations cover bending lengths from 1,400 to 3,000 mm, keeping the same precision and control logic. The values below are indicative across the range and we confirm them exactly in the personalized offer, depending on the chosen model.
| Parameter | Value |
|---|---|
| Configurations | A1400 – A3000 |
| Maximum bending length | 1,400 – 3,000 mm |
| Maximum panel width | 1,250 mm |
| Maximum bending height | 110 – 170 mm |
| Minimum bending height | 4 mm |
| Minimum bending radius | 2 mm |
| Bending angle | < 180° |
| Sheet thickness | 0.5 – 4 mm |
| Positioning accuracy | ±0.01 mm |
| Tool change (tool-less) | < 20 s |
| Drive | full-electric servo |
| Motor power | 44.5 – 216 kW |
| Average working power | 2.2 – 10.8 kW |
| Control system | CNC, 15+ synchronized axes |
| Certifications | CE |
An automatic panel bender serves workshops where thin sheet panels are produced in many variants: electrical enclosures and cabinets, ducting and HVAC components, metal furniture, elevator doors and panels, signage and metal facades. Wherever a classic press brake would require dozens of setups a day, the panel bender delivers the finished panel without changing tools.
The solution is equally suited to one-off batches and the repetitive production of standardized panels. The equipment meets the requirements applicable to CE-marked industrial machinery, in line with the Machinery Directive 2006/42/EC. See also real-world deployments in customer workshops.
For manufacturers of electrical enclosures and HVAC, the ±0.01 mm repeatability means panels that assemble identically, batch after batch. Signage and facade workshops benefit on pre-painted panels, handled without marks. And metal furniture manufacturers cover a wide range of profiles with a single machine, without investing in multiple die sets.
For bending service providers and subcontractors, a panel bender expands the range of orders they can accept: complex panels, in small batches, delivered quickly and without the cost of press brake setups. In the production of equipment and home appliances, where the same panels are repeated in dozens of variants, automating the bending directly lowers the cost per part and removes the dependence on a single experienced operator.
An automatic panel bender works most efficiently on thin sheet, exactly the segment where die bending becomes costly in terms of time. The clamping system and forming blades cover most common fabrication metals, including pre-finished sheet. The thicknesses below are indicative and depend on the material and configuration. The real advantage shows on pre-finished sheet: unlike punch bending, the clamping system leaves no marks on painted or galvanized surfaces, so the panels come out ready to install.
| Material | Indicative thickness |
|---|---|
| Steel (DC01 and similar) | 0.5 – 4 mm |
| Stainless steel | 0.5 – 3 mm |
| Aluminum | 0.5 – 4 mm |
| Painted / galvanized sheet | 0.5 – 3 mm |
The workflow on an automatic panel bender is simple and repeatable, from file to finished panel:
1. The operator imports the panel's STEP/DXF file into the offline programming software.
2. The software automatically generates the bending sequence and simulates collisions before production.
3. The sheet is loaded onto the table, manually or through the automatic feeding system.
4. The 4-axis clamping system positions the panel to the programmed dimension, with ±0.01 mm precision.
5. The upper and lower blades perform positive and negative bends through oscillation, without repositioning the part.
6. The finished panel is unloaded, and the machine moves to the next profile without changing tools.
The entire cycle, from program to first good part, takes minutes. Because the recipes stay saved, resuming a recurring order is done in a few clicks, and a new operator quickly reaches consistent results, a concrete advantage for workshops with changing staff. Unlike a press brake where every new profile requires manual setup, here the transition between parts is part of the program.
What sheet thickness does a LAZIRON panel bender process?
The standard range processes 0.5–4 mm sheet, the ideal segment for steel, stainless steel and aluminum panels. For each application we confirm the exact thickness and material in the personalized offer, depending on the chosen configuration.
How does a panel bender differ from a CNC press brake?
A press brake bends with a punch and die, physically swapped for every profile. An automatic panel bender uses forming blades and a clamping system that moves from one profile to another without tools, in under 20 seconds, which is why it is much faster on small and varied batches.
What warranty does UZINEX offer for this panel bender?
Every UZINEX machine comes with a 60-month standard manufacturer warranty, phone support and on-site service intervention in under 24 hours anywhere in Romania.
Why is the price more affordable than with well-known brands?
We manufacture the equipment and export it directly from China to Europe, without intermediaries and without the markup of an expensive brand. You pay for the technology and the components, not the name on the casing. In addition, if you find the same machine cheaper, you receive an extra 5–10% discount.
How long does installation and commissioning take?
Transport, commissioning and operator training are included and carried out by a local team, in your language. Before shipping, the equipment goes through a free inspection, so your workshop becomes operational quickly, with no hidden costs.
Can panel loading and unloading be automated?
Yes. The panel bender system can optionally be equipped with automatic feeding via suction cups or conveyor belts, synchronized with the bending cycle to reduce idle times and manual handling. We determine the exact configuration based on the panel weight and your production volume.
How high is the energy consumption?
The full-electric servo drive recovers energy on every stroke and consumes up to 40% less than an equivalent hydraulic press. The average working power stays in the order of a few kW, even if the installed motor power is higher, a noticeably lower operating cost in the long run.
When you choose a panel bender from LAZIRON, you get more than the machine:
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Direct manufacturer-exporter, we manufacture in China and deliver directly to Europe, without intermediaries and without the markup of a European brand; you pay for the technology, not the name on the casing.
• Components on a par with major manufacturers, CNC control, full-electric servo drive and an anti-vibration frame, CE certified to international standards.
• Everything to do with installation, included, free pre-delivery inspection, transport, commissioning and operator training, by a local team that speaks your language.
• Long-term support, spare parts available locally, fast intervention and, on request, sourcing for equipment not listed on the site.
With ±0.01 mm precision, tool-less changeover and low consumption, this panel bender turns every small batch into profitable production, without paying for the name on the casing. Every month of manual bending means lost time and lost orders.
