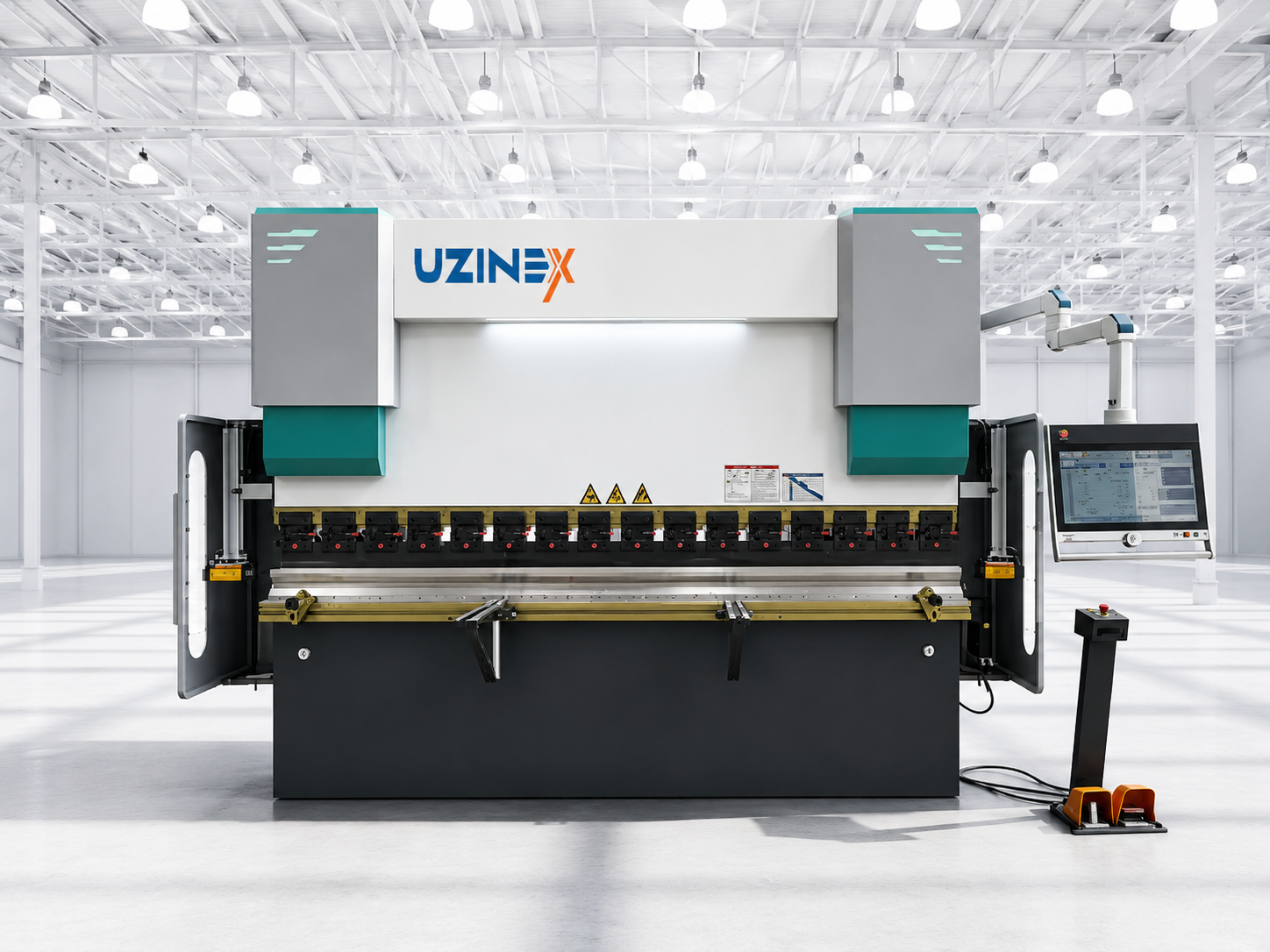

WyBend C Series CNC Sheet Metal Press Brake

Product code: UZX-226

CNC press brake with synchronized Bosch Rexroth/Yaskawa hydraulic servo, accuracy ±0.01 mm, Delem DA66T CNC with 8–11 axes and 5000 tools, 15,000-point deflection compensation, 5-axis CNC back gauge, 5 models 400–1750 kN.

Bending force (kN)
400
Working length (mm)
1500
Stroke (mm)
200
Front table height (mm)
950
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

CNC PRESS BRAKE · SERVO-HYDRAULICSRV-LSRV-R±0.01 mm CLOSED LOOPCNC CROWNING 15 000 PTS.DA66T · 5 000 TOOLSXYUZX-PB-CREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

CNC press brake: hydraulic servo ±0,01 mm

AUTOMOTIVE INDUSTRYL 4 200CRITICAL JOINTUZX-AUTREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Automotive, medical and aerospace components

MACHINE SHOPØ 56Ø 40i = 1:6SHAFTS · GEARS · TRANSMISSIONSUZX-GMRREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

High-mix subcontracting

WEEE · ELECTRONICSU1U2U3FR-4 · 2 LAYER · 1.6 mmUZX-PCBREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Premium electrical cabinets and electronics

Technical data

Technical specifications

Bending force (kN)400
Working length (mm)1500
Stroke (mm)200
Front table height (mm)950
Opening height (mm)450
Back gauge (mm)450
Dimensions (mm)2200×1300×2250
CNC control systemDelem DA66T / Cybelec, 8–11 axes, 5000 tools, offline
Hydraulic servoBosch Rexroth + Yaskawa,±0.01 mm accuracy
Deflection compensationCNC, 15,000 points, ±0.01 mm accuracy
Multi-axis back gauge5 CNC axes, ±0.02 mm, Schneider Electric
Frame300HB+ steel, min. 14 mm plate, heat-treated, CNC-milled
Sheet supportMotorized, 1.5–5.5 m, ±0.5 mm accuracy
Angle measurementLaser, ±0.1°, LVD / Pama
SafetyIEC light curtains, 8 mm detection, 45–1000 mm, SFI/Leuze
About this equipment

The WyBend C Series is a CNC press brake with a synchronized hydraulic servo system, a high-rigidity 300HB+ steel frame and a CNC system with 8–11 axes and up to 5,000 programmable tools, available in 5 configurations: from the C 40/1500 (400 kN, 1500 mm) up to the C 175/4000 (1750 kN, 4000 mm). With a bending accuracy of ±0.01 mm through a dual Bosch Rexroth / Yaskawa hydraulic servo, automatic CNC deflection compensation in 15,000 points and a multi-axis back gauge with ±0.02 mm accuracy, this CNC press brake is the solution for producers of complex parts with tight tolerances that exceed the capabilities of conventional NC systems.

Compared with the WyBend NC series with torsion-bar synchronization and ±1° accuracy, the WyBend C Series CNC press brake uses independent hydraulic servo motors on each cylinder, with continuous position feedback and closed-loop control, ensuring ±0.01 mm accuracy independent of load variations, hydraulic temperature or system wear over time.

Key advantages of the WyBend C Series CNC press brake

• Synchronized Bosch Rexroth / Yaskawa hydraulic servo:±0.01 mm accuracy. The dual hydraulic servo system with independent cylinders and closed-loop control from Bosch Rexroth Germany / Yaskawa Japan ensures a bending accuracy of ±0.01 mm over the entire 1500–4000 mm length, with automatic real-time correction of any deviation from the programmed position.

• CNC deflection compensation in 15,000 points: uniformity over the entire length. The CNC beam-deflection compensation system calculates and applies the crowning corrections in 15,000 points along the working length, ensuring that the bending angle is uniform over the entire part length even at maximum loads, with no under-bent zones typical of press brakes without active compensation.

• CNC with 8–11 axes and 5,000 programmable tools: the Delem DA66T / Cybelec CNC system of the CNC press brake manages 8–11 axes simultaneously with a library of 5,000 programmable tools, automatic parameter calculation and offline programming from CAD/CAM systems, suited to producers with a wide variety of parts and frequent program changes.

• 300HB+ steel frame with precision CNC milling: the frame of the CNC press brake is made of 300HB+ steel with inner side plates of at least 14 mm thickness, heat-treated and high-precision CNC-milled to eliminate residual stresses and guarantee structural rigidity throughout the equipment's service life.

• Multi-axis 5-axis CNC back gauge with ±0.02 mm accuracy: the multi-axis back gauge with 5 CNC-controlled axes positions the material with ±0.02 mm accuracy on all axes simultaneously, with automatic toolpath calculation for complex multi-step bending sequences.

• Motorized sheet support 1.5–5.5 m: assists large sheets. The motorized sheet support with adjustable length 1.5–5.5 m and ±0.5 mm accuracy assists the operator in handling long, heavy sheets, preventing deformation from the sheet's own weight during bending.

• Laser angle-measurement system ±0.1°: real-time feedback. The laser bending-angle measurement system provides real-time feedback of the actual angle achieved, with automatic correction to compensate for the springback specific to each material and thickness, with no manual measurement with a protractor.

Technical specifications of the WyBend C Series CNC press brake

ParameterC 40/1500C 80/2500C 100/3200C 135/3200C 175/4000
Bending force (kN)400800100013501750
Working length (mm)15002500320032004000
Stroke (mm)200250250300320
Front table height (mm)95098098010001050
Opening height (mm)450490490520560
Back gauge (mm)450600600700800
Dimensions (mm)2200×1300×22503100×1700×28003800×1800×31003800×2100×32004800×2300×3500
CNC control systemDelem DA66T / Cybelec, 8–11 axes, 5000 tools, offlineDelem DA66T / Cybelec, 8–11 axes, 5000 tools, offlineDelem DA66T / Cybelec, 8–11 axes, 5000 tools, offlineDelem DA66T / Cybelec, 8–11 axes, 5000 tools, offlineDelem DA66T / Cybelec, 8–11 axes, 5000 tools, offline
Hydraulic servoBosch Rexroth + Yaskawa,±0.01 mm accuracyBosch Rexroth + Yaskawa,±0.01 mm accuracyBosch Rexroth + Yaskawa,±0.01 mm accuracyBosch Rexroth + Yaskawa,±0.01 mm accuracyBosch Rexroth + Yaskawa,±0.01 mm accuracy
Deflection compensationCNC, 15,000 points, ±0.01 mm accuracyCNC, 15,000 points, ±0.01 mm accuracyCNC, 15,000 points, ±0.01 mm accuracyCNC, 15,000 points, ±0.01 mm accuracyCNC, 15,000 points, ±0.01 mm accuracy
Multi-axis back gauge5 CNC axes, ±0.02 mm, Schneider Electric5 CNC axes, ±0.02 mm, Schneider Electric5 CNC axes, ±0.02 mm, Schneider Electric5 CNC axes, ±0.02 mm, Schneider Electric5 CNC axes, ±0.02 mm, Schneider Electric
Frame300HB+ steel, min. 14 mm plate, heat-treated, CNC-milled300HB+ steel, min. 14 mm plate, heat-treated, CNC-milled300HB+ steel, min. 14 mm plate, heat-treated, CNC-milled300HB+ steel, min. 14 mm plate, heat-treated, CNC-milled300HB+ steel, min. 14 mm plate, heat-treated, CNC-milled
Sheet supportMotorized, 1.5–5.5 m, ±0.5 mm accuracyMotorized, 1.5–5.5 m, ±0.5 mm accuracyMotorized, 1.5–5.5 m, ±0.5 mm accuracyMotorized, 1.5–5.5 m, ±0.5 mm accuracyMotorized, 1.5–5.5 m, ±0.5 mm accuracy
Angle measurementLaser, ±0.1°, LVD / PamaLaser, ±0.1°, LVD / PamaLaser, ±0.1°, LVD / PamaLaser, ±0.1°, LVD / PamaLaser, ±0.1°, LVD / Pama
SafetyIEC light curtains, 8 mm detection, 45–1000 mm, SFI/LeuzeIEC light curtains, 8 mm detection, 45–1000 mm, SFI/LeuzeIEC light curtains, 8 mm detection, 45–1000 mm, SFI/LeuzeIEC light curtains, 8 mm detection, 45–1000 mm, SFI/LeuzeIEC light curtains, 8 mm detection, 45–1000 mm, SFI/Leuze

WyBend C versus WyBend NC: when to choose CNC over NC

The WyBend NC Series with torsion-bar synchronization and ±1° accuracy is the solution for repetitive production of standard profiles where low investment and operational simplicity are priorities. The WyBend C Series CNC press brake with a hydraulic servo and ±0.01 mm accuracy is needed when: the angle tolerances exceed ±0.5°, the parts have long multi-step bending sequences, production includes materials with variable springback, or when offline programming from CAD/CAM is required for maximum efficiency. UZINEX provides free consulting for the selection of the right series.

Applications and industries for the WyBend C Series CNC press brake

The WyBend C Series CNC press brake is intended for producers of complex metal parts with tight tolerances: precision electrical cabinets, automotive components, medical equipment, electronic-equipment housings and aerospace structures where the angular tolerance of ±0.01 mm and series-to-series repeatability are mandatory for the correct functioning of the final product.

Subcontracting workshops that produce diverse parts for multiple customers benefit from the 5,000-tool library and the offline programming of the WyBend C Series CNC press brake: each new order is programmed in CAD/CAM software and transferred directly to the machine, with a visual simulation of the bending sequence before production starts, eliminating first-part scrap.

Producers of premium metal furniture, architectural façades and precision aluminum profiles use the motorized 1.5–5.5 m sheet support and the laser angle-measurement system of the WyBend C Series CNC press brake for the precise handling and bending of long sheets and profiles without sheet deformation or angle variations along the length.

How the WyBend C Series CNC press brake works

1. CNC programming or offline import: the bending program is created on the Delem DA66T CNC panel or imported from offline CAD/CAM software; the system automatically calculates the parameters for each bend in the sequence, including springback compensation for the selected material.

2. Automatic deflection-compensation setting: the CNC system calculates and applies the optimal crowning profile in 15,000 points along the working length for the current load, ensuring a uniform angle across the entire part width from the first bend.

3. Multi-axis back-gauge positioning: the 5 CNC axes of the back gauge position simultaneously at the programmed coordinates with ±0.02 mm accuracy, with automatic toolpath calculation to avoid collisions with the part or tools.

4. Bending with closed-loop hydraulic servo: the independent Bosch Rexroth hydraulic servo cylinders lower the beam at rapid speed and switch to the slow bending speed; the continuous position feedback corrects any deviation in real time to reach the programmed angle with ±0.01 mm accuracy.

5. Laser angle check and automatic correction: the laser measurement system checks the actual bend angle; if the real springback differs from the calculated one, the system automatically corrects the parameter for the following bends in the same series.

Why UZINEX for the WyBend C Series CNC press brake

• Free technical consulting: NC or CNC, optimal model. UZINEX evaluates the required tolerances, part complexity, production volume and programming requirements to recommend the WyBend NC or C and the optimal model.

• Free transport, assembly and commissioning included: the CNC press brake is delivered, installed and calibrated at the customer's site, with CNC system configuration, angular calibration and operator training.

• Extended 60-month warranty: warranty for all components with technical support and intervention in under 24 hours in Romania (24–72 hours in other countries).

• National technical support in under 24 hours in Romania (24–72 hours in other countries): a 24/7 phone line and fast intervention.

• Smart AI manual included: AI assistance for 96%+ of technical requests.

• Full eligibility for European funding: documentation and support for EU, PNRR, structural funding.

The WyBend C Series CNC press brake is the solution for producers who accept no precision compromises, with a Bosch Rexroth/Yaskawa hydraulic servo at ±0.01 mm, CNC deflection compensation in 15,000 points, 8–11 axes and 5,000 programmable tools, a 5-axis back gauge at ±0.02 mm, laser angle measurement and motorized sheet support, in 5 models from 400 kN/1500 mm to 1750 kN/4000 mm.
