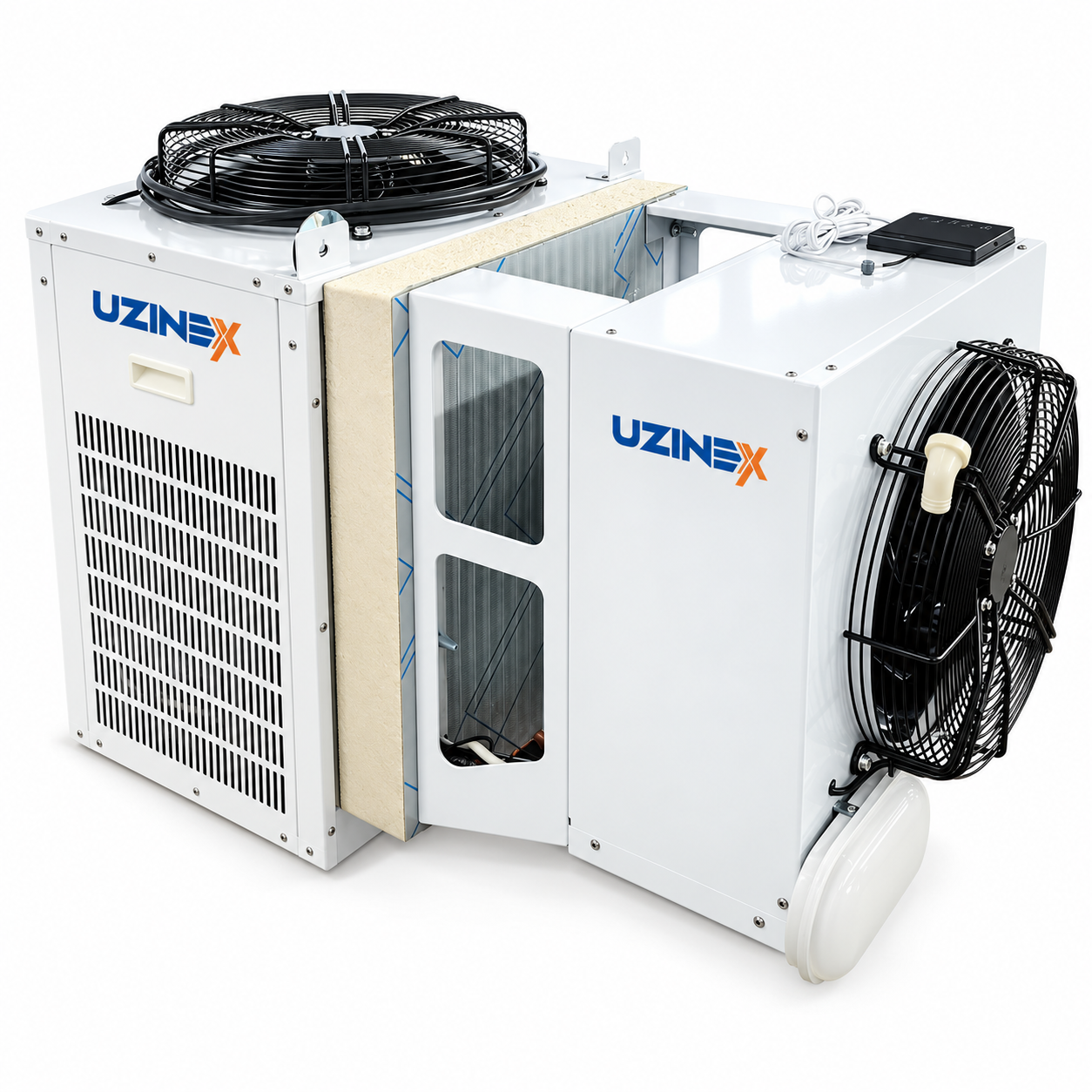

Complete refrigeration unit for cold rooms, monoblock or split, 2, 3 or 5 HP, with condenser, evaporator, lighting and electronic control.
| Dimensions | 1170 × 660 × 830 mm |
| Power supply | 220 V, 50 Hz |
| Evaporating temperature | -42…5 °C |
| Condensing temperature | 40 °C |
| Outdoor temperature | -10…45 °C |
| Refrigerant | R22 / R404a |
| Max. current | 10 A |
| Power input | 1400 W |
| Pressure control | electronic sensor |
| Condenser fan | 1 × 180 W |
| Evaporator fan | 1 × 180 W |
| Condenser surface | 20 m² |
| Evaporator surface | 20 m² |
| Weight | 98 kg |
| Cooling capacity at -5 °C | 3750 W |
| Cooling capacity at -25 °C | 1850 W |
This cold room refrigeration unit is a complete set: the condenser is installed outside, and the evaporator with its fan inside the room. The set includes the lighting system, smart electronic control, a welded steel wire dust screen and the drain pipe. The monoblock version comes in one piece, the split version in two.
The series has three capacities. The manufacturer recommends the 2 HP unit for freezing up to 25 m³ or chilling up to 40 m³, the 3 HP unit for freezing up to 40 m³ or chilling up to 70 m³, and the 5 HP unit for freezing up to 70 m³ or chilling up to 110 m³.
The evaporating temperature ranges from -42 to 5 °C, and the unit works at outdoor temperatures from -10 to 45 °C. Pressure is controlled by an electronic sensor. The refrigerant is R22 or R404a.
| Parameter | SY2S | SY3S | SY5S |
|---|---|---|---|
| Dimensions | 1170 × 660 × 830 mm | 1170 × 660 × 830 mm | 1350 × 800 × 950 mm |
| Power supply | 220 V, 50 Hz | 220 V, 50 Hz | 380 V, 50 Hz |
| Evaporating temperature | -42…5 °C | -42…5 °C | -42…5 °C |
| Condensing temperature | 40 °C | 40 °C | 40 °C |
| Outdoor temperature | -10…45 °C | -10…45 °C | -10…45 °C |
| Refrigerant | R22 / R404a | R22 / R404a | R22 / R404a |
| Max. current | 10 A | 18 A | 13 A |
| Power input | 1400 W | 2300 W | 3700 W |
| Pressure control | electronic sensor | electronic sensor | electronic sensor |
| Condenser fan | 1 × 180 W | 1 × 180 W | 1 × 380 W |
| Evaporator fan | 1 × 180 W | 1 × 180 W | 1 × 380 W |
| Condenser surface | 20 m² | 30 m² | 50 m² |
| Evaporator surface | 20 m² | 30 m² | 50 m² |
| Weight | 98 kg | 106 kg | 160 kg |
| Cooling capacity at -5 °C | 3750 W | 5625 W | 9370 W |
| Cooling capacity at -25 °C | 1850 W | 2785 W | 4645 W |
Cooling capacity is given at 32 °C outdoor temperature.
The monoblock mounts on the room wall in one piece, with no refrigerant lines to run. It is simpler and faster to install. The split has the condenser away from the room, on the roof or in the yard, and only the evaporator stays in the room. Noise and heat stay outside.
The price depends on the capacity and the version. The Uzinex price includes transport, installation, commissioning, training and the 60-month warranty. Request a quote with the room volume and temperature.
• Transport and commissioning included, at your site, with staff training.
• 60-month warranty, standard across the whole catalogue.
• Service with nationwide coverage in Romania, on-site visit within 24 hours.
• Spare parts in stock, so a breakdown does not keep the kitchen closed.
• Technical documentation for EU-funded projects, PNRR and public tenders (SEAP/SICAP).
• Configuration on request: the capacity (2, 3 or 5 HP), the monoblock or split version and the installation on the room.
