Soap making machinery

Automatic Soap Making Machine ZAOTECH

Product code: UZX-411

A modular, fully scalable line for laundry and toilet bars, configurable from 100 to 3000 kg/h by choosing matched mixer, mill and plodder models.

MX-50
50
MX-100
100
MX-200
200
Model
Capacity (kg/h)
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

CONVEYOR BELTM1M22 400v = 0.5 m/sXYUZX-CNVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Growing factories

BEVERAGE PRODUCTIONFOOD · COSMETICS · PHARMA3 000UZX-BEVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Laundry and toilet soap

MACHINE SHOPØ 56Ø 40i = 1:6SHAFTS · GEARS · TRANSMISSIONSUZX-GMRREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Staged investment

INDUSTRIAL PRESSING1 600800F = 250 tXYUZX-PRSREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Own soap brands

Technical data

Technical specifications

MX-5050
MX-100100
MX-200200
ModelCapacity (kg/h)
TR-120100–200
TR-150300–500
TR-260500–1000
TR-4051000–2000
ModelCapacity (kg/h)
SP-90100
SP-150200
SP-180300–500
SP-200800–1200
SP-2201000–2000
MaterialRole in the bar
Soap noodlesBase soap and fatty-acid content
PigmentBar colour and brand identity
FragranceScent profile
Functional additives (optional)Performance and finish
About this equipment

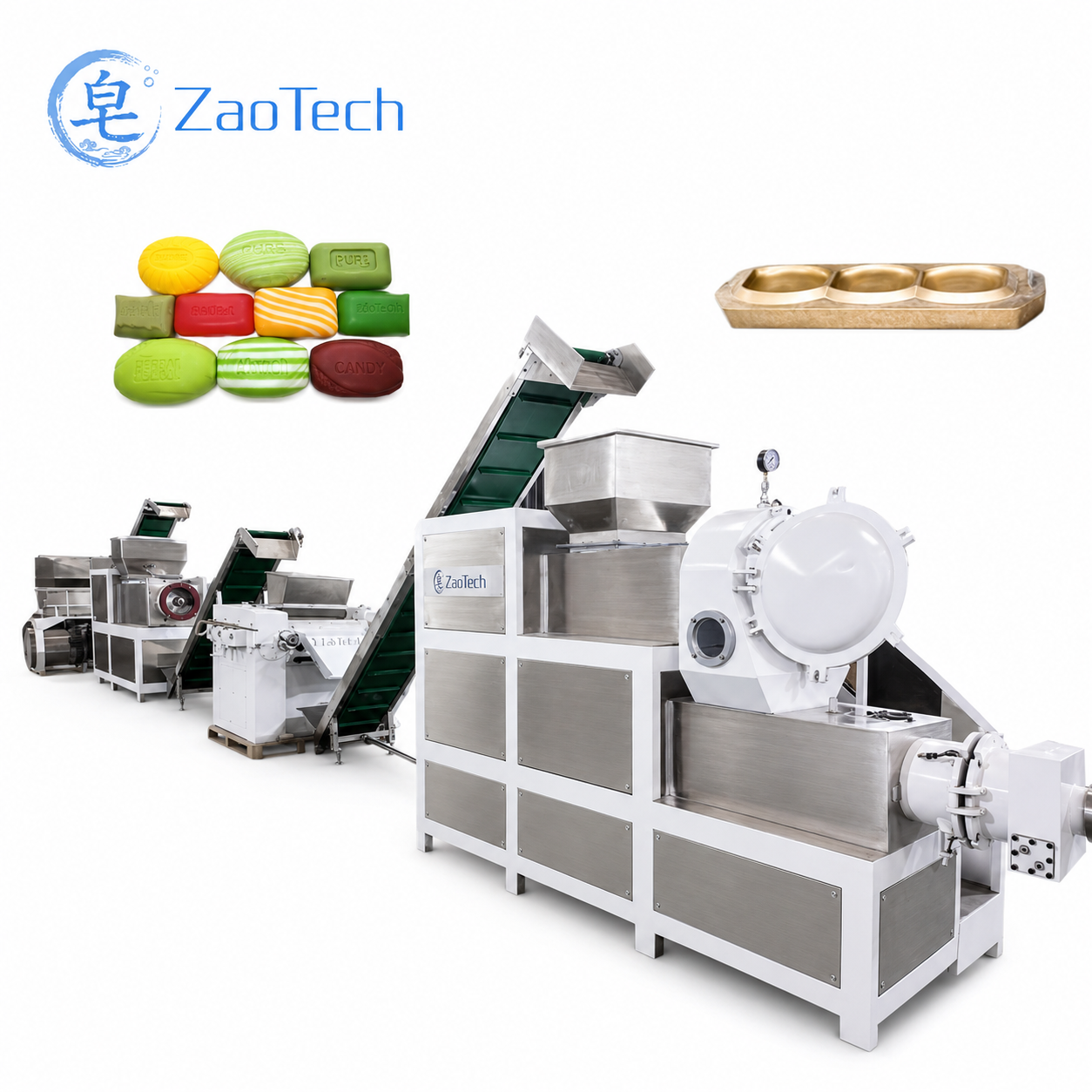

This automatic soap making machine is a modular finishing line for laundry and toilet bars, configured from 100 to 3000 kg per hour. It starts from soap noodles and mixes, refines, plods, cuts and stamps them, and each machine is chosen in the size that matches your output.

The line works with 40% to 80% fatty-acid content, and bar shape, weight, colour, fragrance and logo follow your brand. Machines are shipped in wooden cases for safe transport.

Automatic soap making machine capacity tiers

Five tiers are available: 0–300, 300–500, 500–800, 1000–2000 and 2000–3000 kg per hour. The MX mixers come in 50, 100 and 200 kg batches, the TR three-roller mills from 100–200 up to 1000–2000 kg/h, and the SP soap plodders from 100 kg/h up to 1000–2000 kg/h. The tables below list power, dimensions and weight for each model.

ModelCapacity (kg/batch)PowerDimensions (mm)Weight
MX-50502.2 kW1350 × 470 × 910500 kg
MX-1001004 kW1730 × 670 × 1095750 kg
MX-2002005 kW2100 × 880 × 12001000 kg
ModelCapacity (kg/h)Roll Ø / lengthPowerWeight
TR-120100–200120 / 200 mm3 kW380 kg
TR-150300–500150 / 300 mm4 kW600 kg
TR-260500–1000260 / 675 mm7.5 kW1000 kg
TR-4051000–2000405 / 810 mm15 kW5000 kg

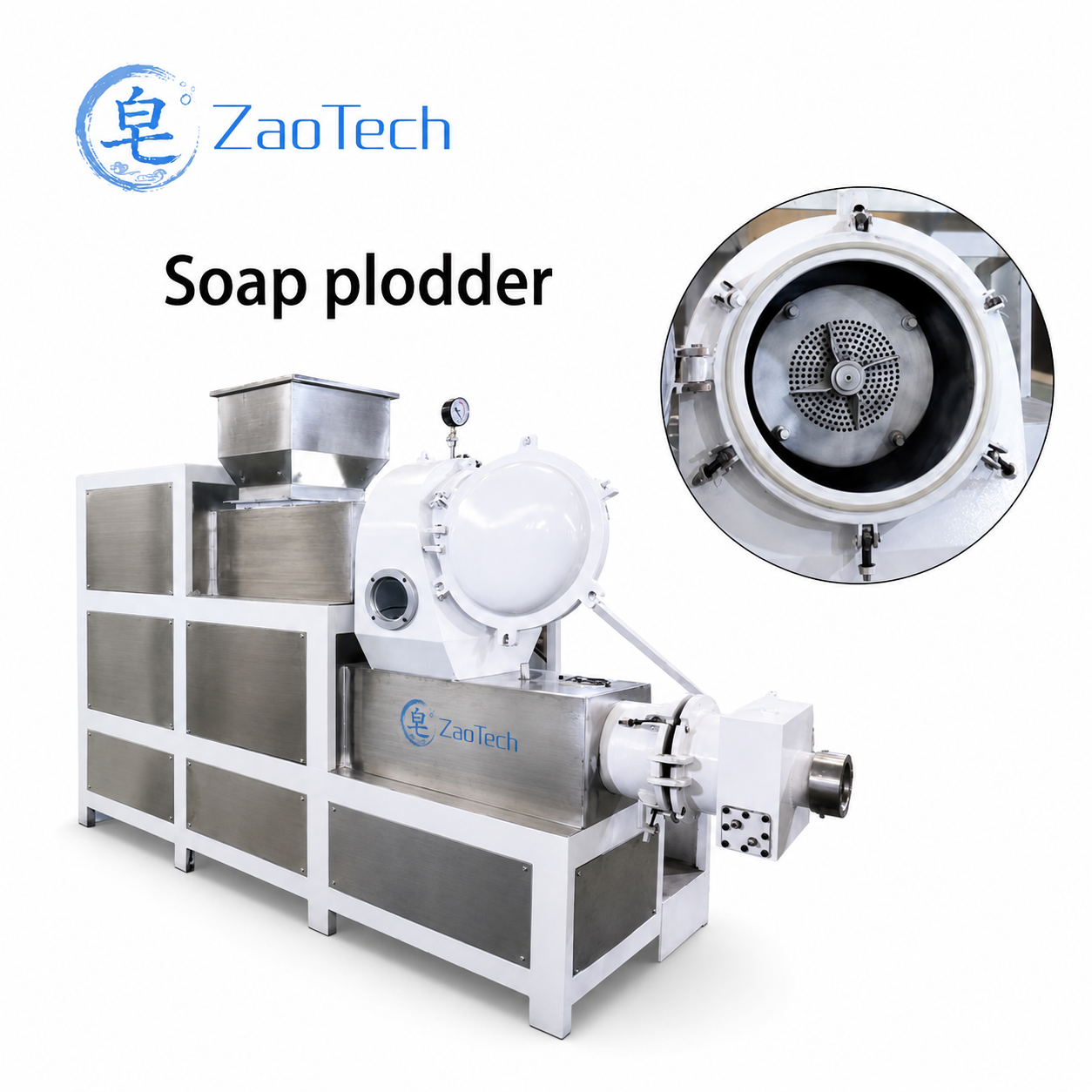

ModelCapacity (kg/h)Screw ØPowerWeight
SP-9010090 mm3 kW150 kg
SP-150200150 mm3.5 kW300 kg
SP-180300–500160 mm5.5 kW500 kg
SP-200800–1200200 mm11 kW600 kg
SP-2201000–2000220 mm15 kW650 kg

Growing with demand

All sizes share the same architecture, so a workshop can start with a small mixer, mill and plodder and later move to larger models without changing the process or retraining the team. Soap-contact surfaces are stainless steel on heavy frames.

MaterialRole in the bar
Soap noodlesBase soap and fatty-acid content
PigmentBar colour and brand identity
FragranceScent profile
Functional additives (optional)Performance and finish

Choosing the models

Tell us the output you need today and the volume you expect in two to three years, and we balance mixer, mill and plodder so no stage becomes the bottleneck.

What Uzinex provides

• Delivery, installation and commissioning in Romania, with operator training on your own formulation.

• 60-month warranty and nationwide service with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement applications.
