Soap making machinery

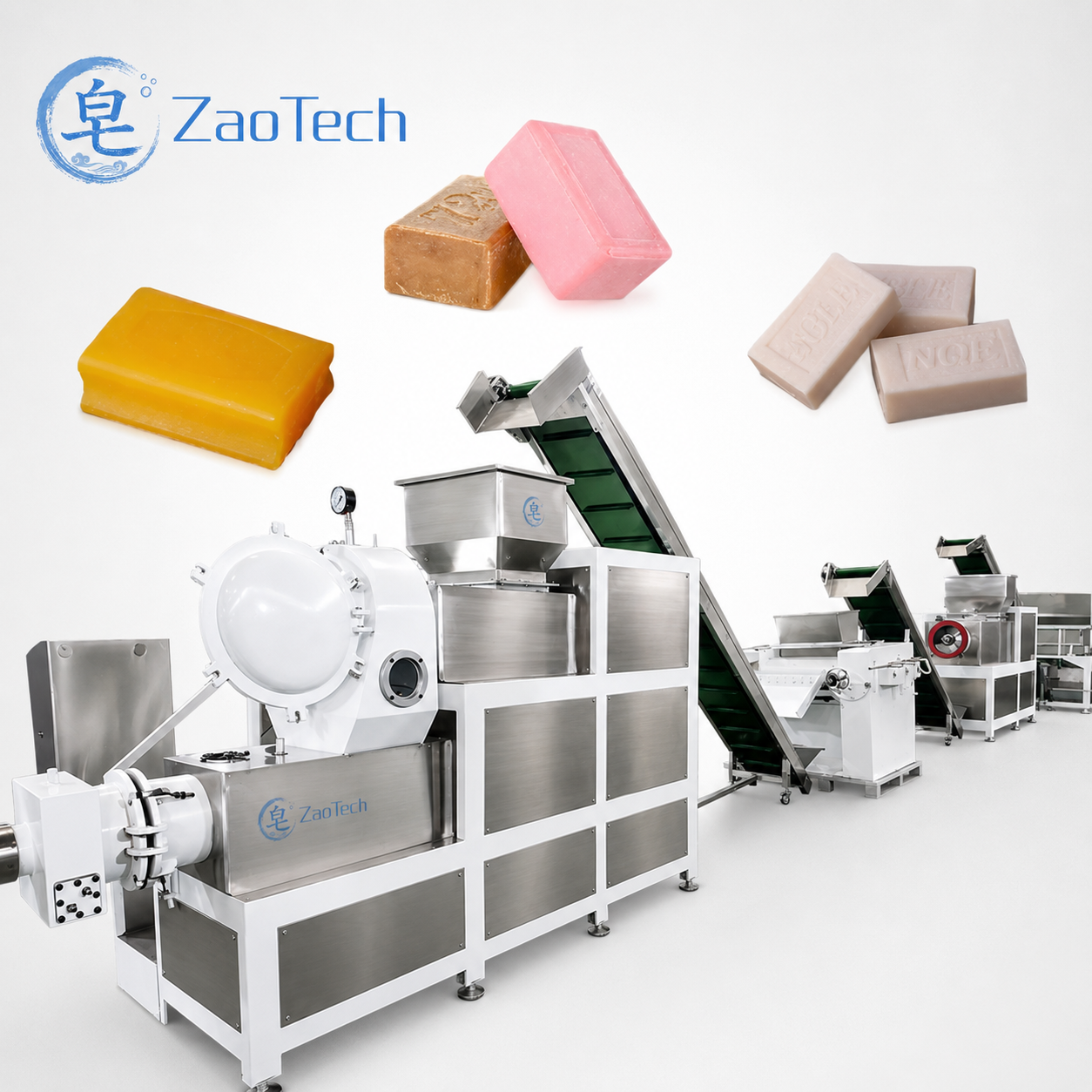

Laundry Soap Production Line ZAOTECH

Product code: UZX-406

A complete bar-soap finishing line for 100 to 300 kg/h: mixing, refining, vacuum plodding, cutting and stamping in one continuous flow.

Machine
Capacity
Soap mixer
300 kg/h
Three-roller mill
300 kg/h

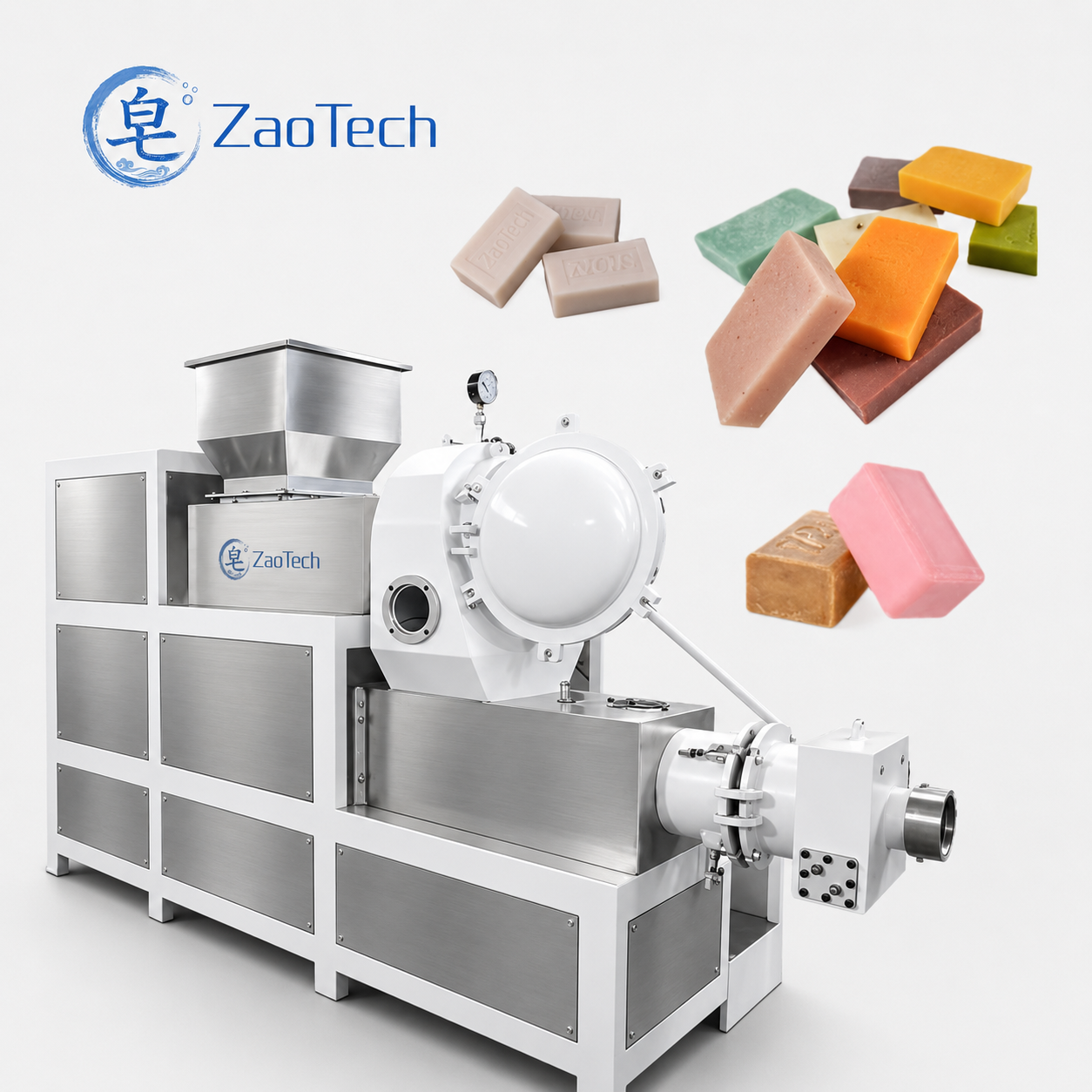

Double-screw vacuum plodder
300 kg/h
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

BEVERAGE PRODUCTIONFOOD · COSMETICS · PHARMA3 000UZX-BEVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Small soap factories

INDUSTRIAL PRESSING1 600800F = 250 tXYUZX-PRSREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Private-label laundry soap

CONVEYOR BELTM1M22 400v = 0.5 m/sXYUZX-CNVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Moving on from hand moulding

BOX FORMING · SEALINGL 600FEFCO 0201UZX-BOXREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Cleaning product distributors

Technical data

Technical specifications

MachineCapacity
Soap mixer300 kg/h
Three-roller mill300 kg/h
Double-screw vacuum plodder300 kg/h
Cutter & stamper300 kg/h
Roller diameter (mill)150 mm
Plodder screw diameter180 mm
Cut bar length60–400 mm (adjustable)
Total installed power≈ 25 kW, 380 V, 50 Hz
Workshop area≥ 50 m² (10 × 5 × 3 m)
Operators2–4 persons
MaterialRole in the bar
Soap noodles (soap grains)Base soap providing the fatty-acid content
Pigment / colour pasteBar colour and brand identity
FragranceScent profile of the finished laundry bar
Fillers & builders (optional)Cost control and cleaning performance
About this equipment

This laundry soap production line turns ready-made soap noodles into finished, stamped laundry bars at 100 to 300 kg per hour. It is a four-machine finishing line (mixer, three-roller mill, vacuum plodder and cutter-stamper) for producers who buy noodles and want to put their own bar on the market.

Bars can carry 40% to 80% fatty-acid content, and you decide the length, weight and embossed design. The core line needs about 25 kW on a 380 V, 50 Hz supply, two to four operators and a workshop of roughly 50 m².

How the laundry soap production line makes the bar

Noodles, colour and fragrance are blended in the mixer, then the three-roller mill grinds the mass into a fine, even ribbon. The vacuum plodder removes trapped air and extrudes a dense billet, which is cut to 60–400 mm and pressed by the soap stamping machine into its final shape with your logo.

MachineCapacityPowerDimensions (mm)Weight
Soap mixer300 kg/h2.2 kW1500 × 1000 × 1150500 kg
Three-roller mill300 kg/h4 kW975 × 820 × 950600 kg
Double-screw vacuum plodder300 kg/h4 + 7.5 kW1800 × 1500 × 16501500 kg
Cutter & stamper300 kg/h–1000 × 800 × 1350138 kg
Roller diameter (mill)150 mm150 mm150 mm150 mm
Plodder screw diameter180 mm180 mm180 mm180 mm
Cut bar length60–400 mm (adjustable)60–400 mm (adjustable)60–400 mm (adjustable)60–400 mm (adjustable)
Total installed power≈ 25 kW, 380 V, 50 Hz≈ 25 kW, 380 V, 50 Hz≈ 25 kW, 380 V, 50 Hz≈ 25 kW, 380 V, 50 Hz
Workshop area≥ 50 m² (10 × 5 × 3 m)≥ 50 m² (10 × 5 × 3 m)≥ 50 m² (10 × 5 × 3 m)≥ 50 m² (10 × 5 × 3 m)
Operators2–4 persons2–4 persons2–4 persons2–4 persons

Who it suits

It fits new soap businesses, regional producers launching a private label and existing factories adding a laundry-bar range. Typical products are economy and standard laundry bars and multipurpose cleaning soaps. Stainless steel is used on every part that touches the soap, while the frames are heavy carbon steel.

MaterialRole in the bar
Soap noodles (soap grains)Base soap providing the fatty-acid content
Pigment / colour pasteBar colour and brand identity
FragranceScent profile of the finished laundry bar
Fillers & builders (optional)Cost control and cleaning performance

Choosing the configuration

Tell us the output you plan to sell, the fatty-acid range of your recipe and the bar sizes you want, and we size the line and the stamping die accordingly. If you want to start from oils instead of noodles, a saponification machine is added in front of this line.

What Uzinex provides

• Delivery, installation and commissioning in Romania, with operator training on your own formulation.

• 60-month warranty and nationwide service with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement applications.
