Soap making machinery

Soap Saponification Machine ZAOTECH

Product code: UZX-407

The industrial front end of an oil-to-bar factory: melts oils, doses caustic soda, then dries and mills soap base into noodles at 1000 to 1500 kg/h.

Parameter / module
Specification
Saponification capacity
1000–1500 kg/h
Oil-melting tank
3 m³, melts and mixes oils, fed by oil pump
Metered oil input
Oil flow meter + control switch, 3 kW
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

BEVERAGE PRODUCTIONFOOD · COSMETICS · PHARMA3 000UZX-BEVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Integrated soap factories

INDUSTRIAL PRESSING1 600800F = 250 tXYUZX-PRSREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Soap base production

CONVEYOR BELTM1M22 400v = 0.5 m/sXYUZX-CNVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Soap noodle suppliers

FILLING · DOSING500 ml · ±0.5% · 6 000 BPHUZX-FILREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Control over the recipe

Technical data

Technical specifications

Parameter / moduleSpecification
Saponification capacity1000–1500 kg/h
Oil-melting tank3 m³, melts and mixes oils, fed by oil pump
Metered oil inputOil flow meter + control switch, 3 kW
Soda-melting pool3 m³, with pipes and valves
Soda solution pumpMetered dosing to high tank, 3 kW
High-placed soda tank1 m³, with measuring scale
Installed power> 100 kW, 380 V, 50 Hz
Workshop area≥ 250 m² (25 × 10 × 3.5 m)
Operators4–6 persons
Output of stageDried soap noodles for the finishing line
MaterialRole
Palm oil / palm kernel oil / coconut oilFatty base of the soap
Caustic soda (NaOH)Alkali that drives saponification
PigmentBar colour, added in finishing
FragranceScent, added in finishing
About this equipment

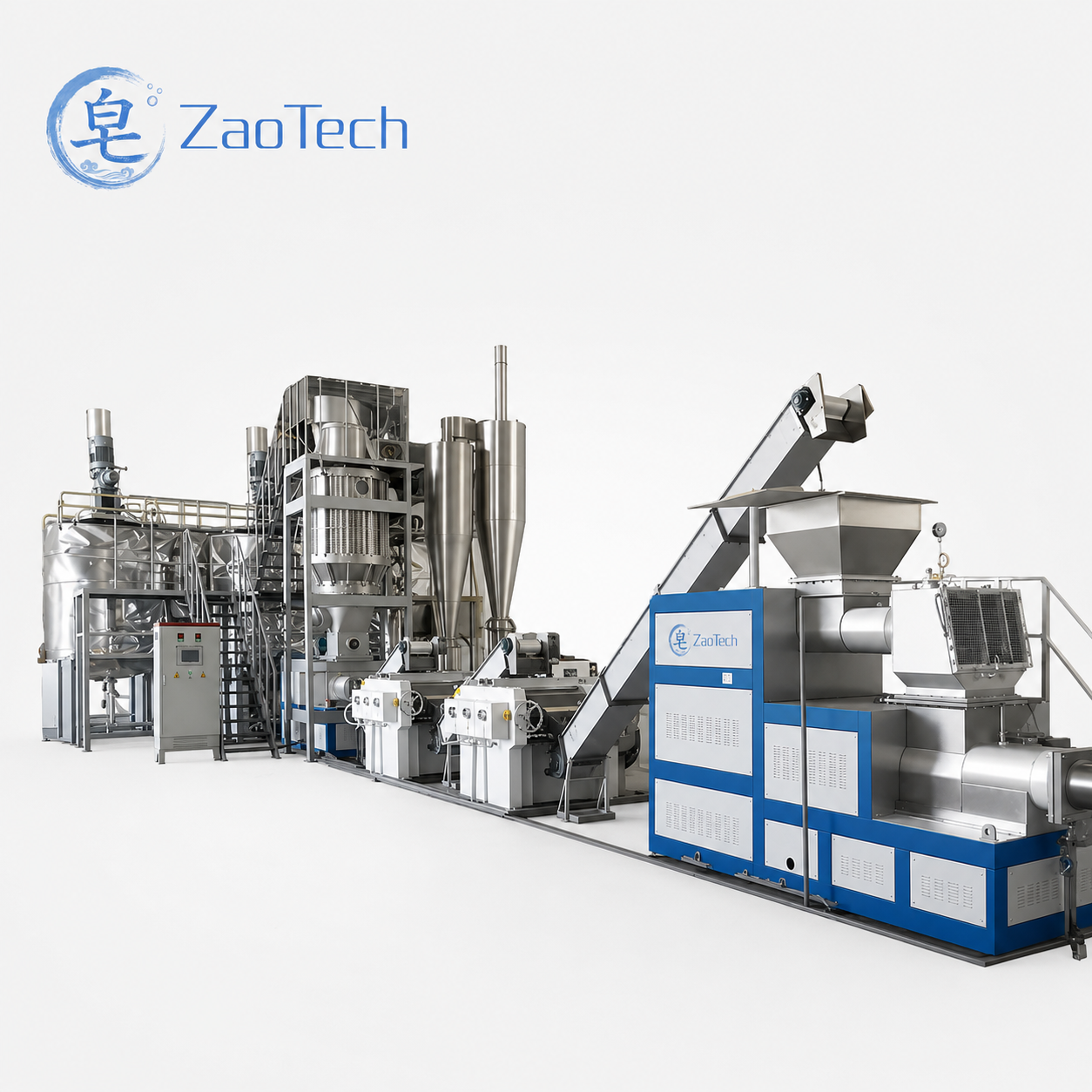

This soap saponification machine reacts melted oils with caustic soda to make soap base, then dries it and cuts it into noodles at 1000 to 1500 kg per hour. It is the first stage of an oil-to-bar soap making plant, so the producer controls the recipe and the cost from the reaction onwards instead of buying noodles.

Palm oil, palm kernel oil and coconut oil can all be used, which lets you follow local oil prices and the bar grade you target. The plant needs more than 100 kW at 380 V, 50 Hz, four to six operators and a building of at least 250 m².

Saponification machine process stages

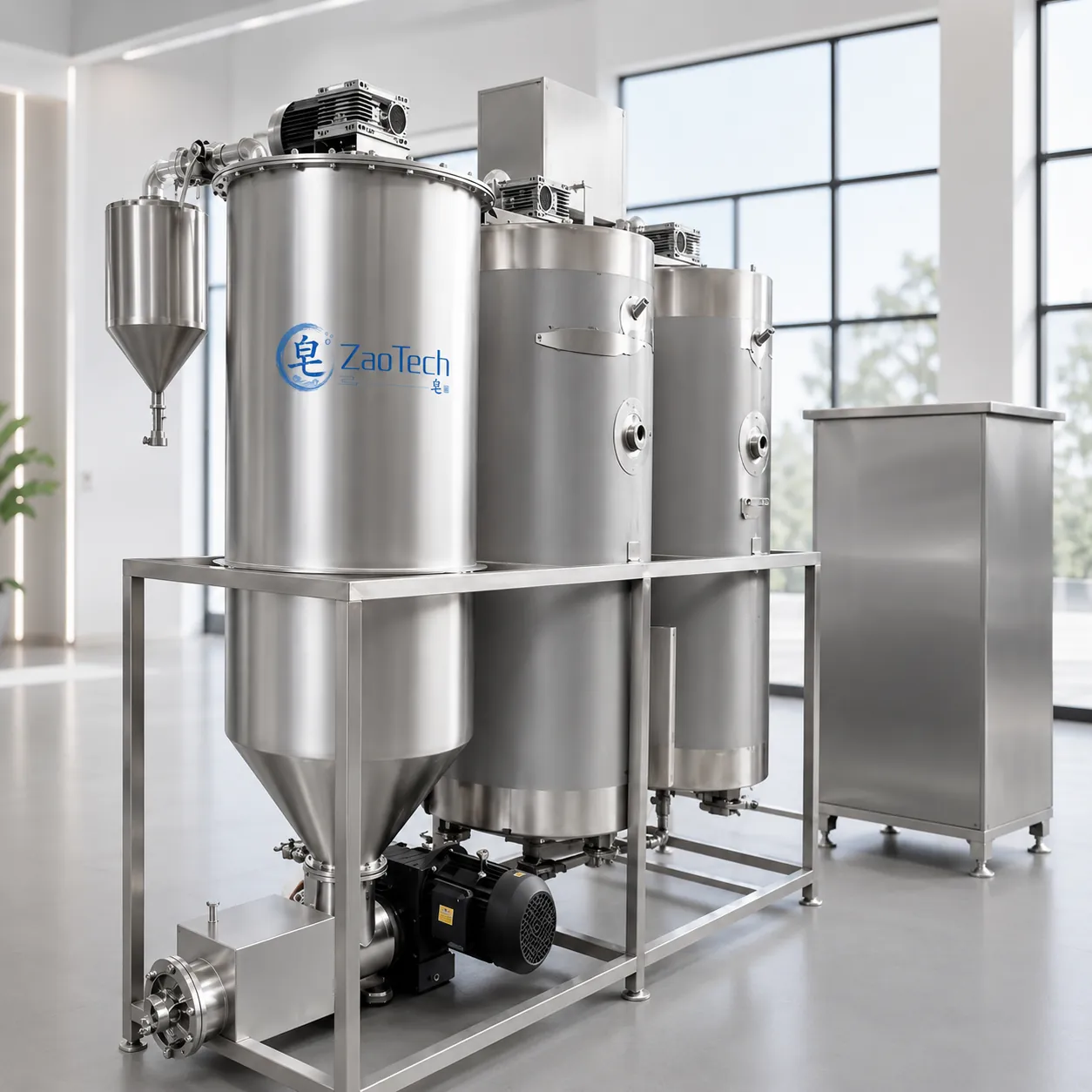

Oils are melted and mixed in a 3 m³ tank and metered through a flow meter, while caustic soda is dissolved in a 3 m³ pool and pumped to a 1 m³ high tank with a measuring scale. Both enter the stirred saponification tank in measured doses. The soap base is discharged, dried and cut into noodles, which then go to the finishing line.

Parameter / moduleSpecification
Saponification capacity1000–1500 kg/h
Oil-melting tank3 m³, melts and mixes oils, fed by oil pump
Metered oil inputOil flow meter + control switch, 3 kW
Soda-melting pool3 m³, with pipes and valves
Soda solution pumpMetered dosing to high tank, 3 kW
High-placed soda tank1 m³, with measuring scale
Installed power> 100 kW, 380 V, 50 Hz
Workshop area≥ 250 m² (25 × 10 × 3.5 m)
Operators4–6 persons
Output of stageDried soap noodles for the finishing line

Why saponify in-house

Making your own noodles fixes the oil blend, the alkali ratio and the additives at the source, so every batch of bars starts from the same base. For a medium or large soap manufacturing plant, and for contract manufacturers with several clients, that control is the main reason to invest in this stage.

MaterialRole
Palm oil / palm kernel oil / coconut oilFatty base of the soap
Caustic soda (NaOH)Alkali that drives saponification
PigmentBar colour, added in finishing
FragranceScent, added in finishing

Planning the plant

The saponification machine is usually paired with a finishing line of mixer, three-roller mill, vacuum plodder and stamper. We size both together, based on the daily tonnage and the bar formats you plan to produce.

What Uzinex provides

• Delivery, installation and commissioning in Romania, with operator training on your own formulation.

• 60-month warranty and nationwide service with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement applications.
