Soap making machinery

Bath Soap Making Machine ZAOTECH

Product code: UZX-412

A complete line for toilet and beauty bars, 100 to 3000 kg/h, tuned for the smooth, fragranced, decoratively stamped finish premium bath soap needs.

MX-50
50
MX-100
100
MX-200
200
Model
Capacity (kg/h)
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

FILLING · DOSING500 ml · ±0.5% · 6 000 BPHUZX-FILREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Premium bath soap

BEVERAGE PRODUCTIONFOOD · COSMETICS · PHARMA3 000UZX-BEVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Cosmetics and personal care

INDUSTRIAL PRESSING1 600800F = 250 tXYUZX-PRSREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Hotels and HoReCa

BOX FORMING · SEALINGL 600FEFCO 0201UZX-BOXREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Retail and private label

Technical data

Technical specifications

MX-5050
MX-100100
MX-200200
ModelCapacity (kg/h)
TR-120100–200
TR-150300–500
TR-260500–1000
TR-4051000–2000
ModelCapacity (kg/h)
SP-90100
SP-150200
SP-180300–500
SP-200800–1200
SP-2201000–2000
MaterialRole in the bath bar
Soap noodlesBase soap for the bath bar
Pigment / colour pasteBar colour and shelf appeal
FragranceScent profile of the bath soap
Cosmetic additives (optional)Skin-care and finish properties
About this equipment

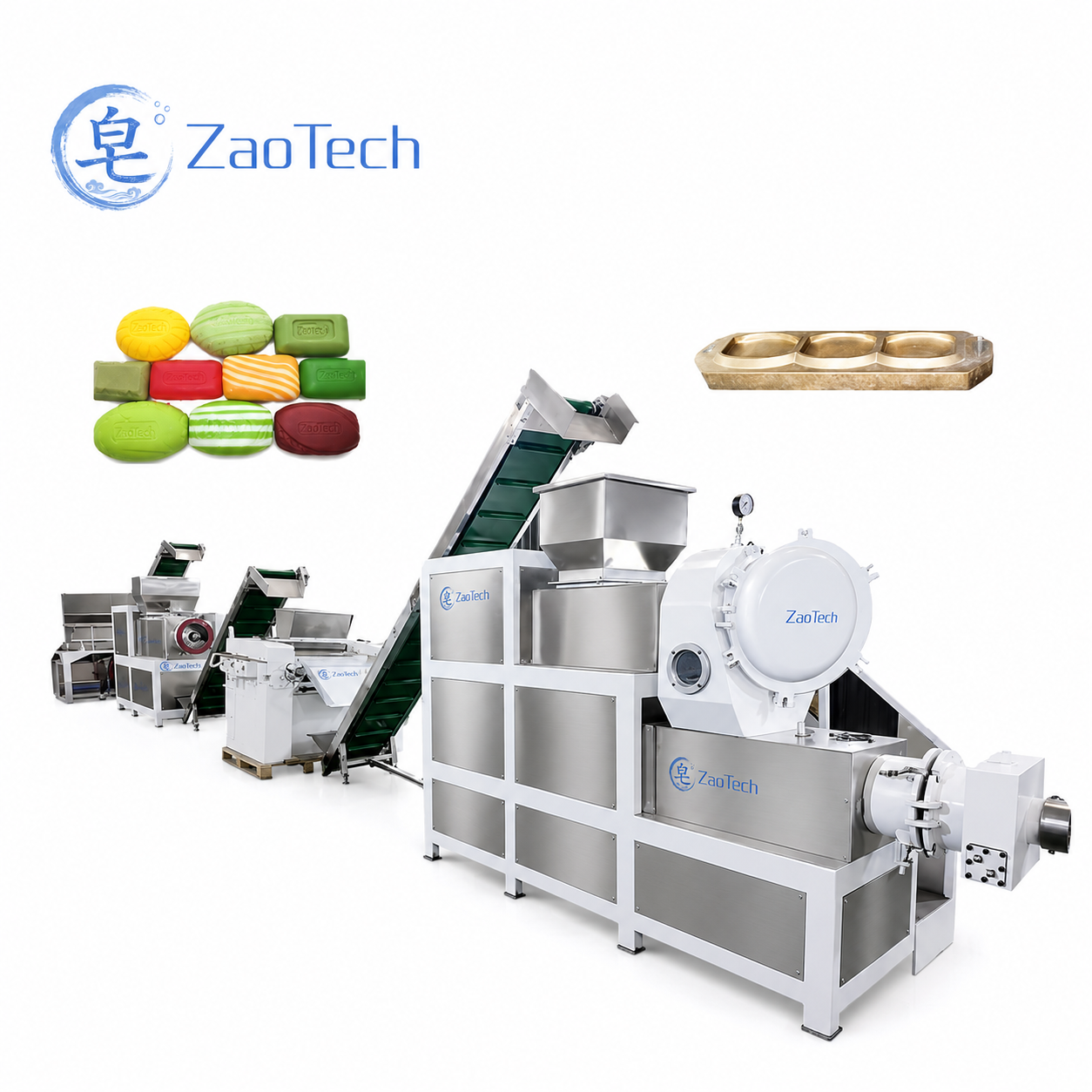

This bath soap making machine, also used as a toilet soap making machine, is a finishing line for toilet and beauty bars, configured from 100 to 3000 kg per hour. It turns soap noodles into smooth, fragranced bath bars through mixing, fine three-roller refining, vacuum plodding and decorative stamping.

Bars can contain 40% to 80% fatty acids, and colour, fragrance, shape and logo are set to your design, from small hotel guest soaps to large retail bars. Machines are shipped in wooden cases.

Bath soap making machine finish quality

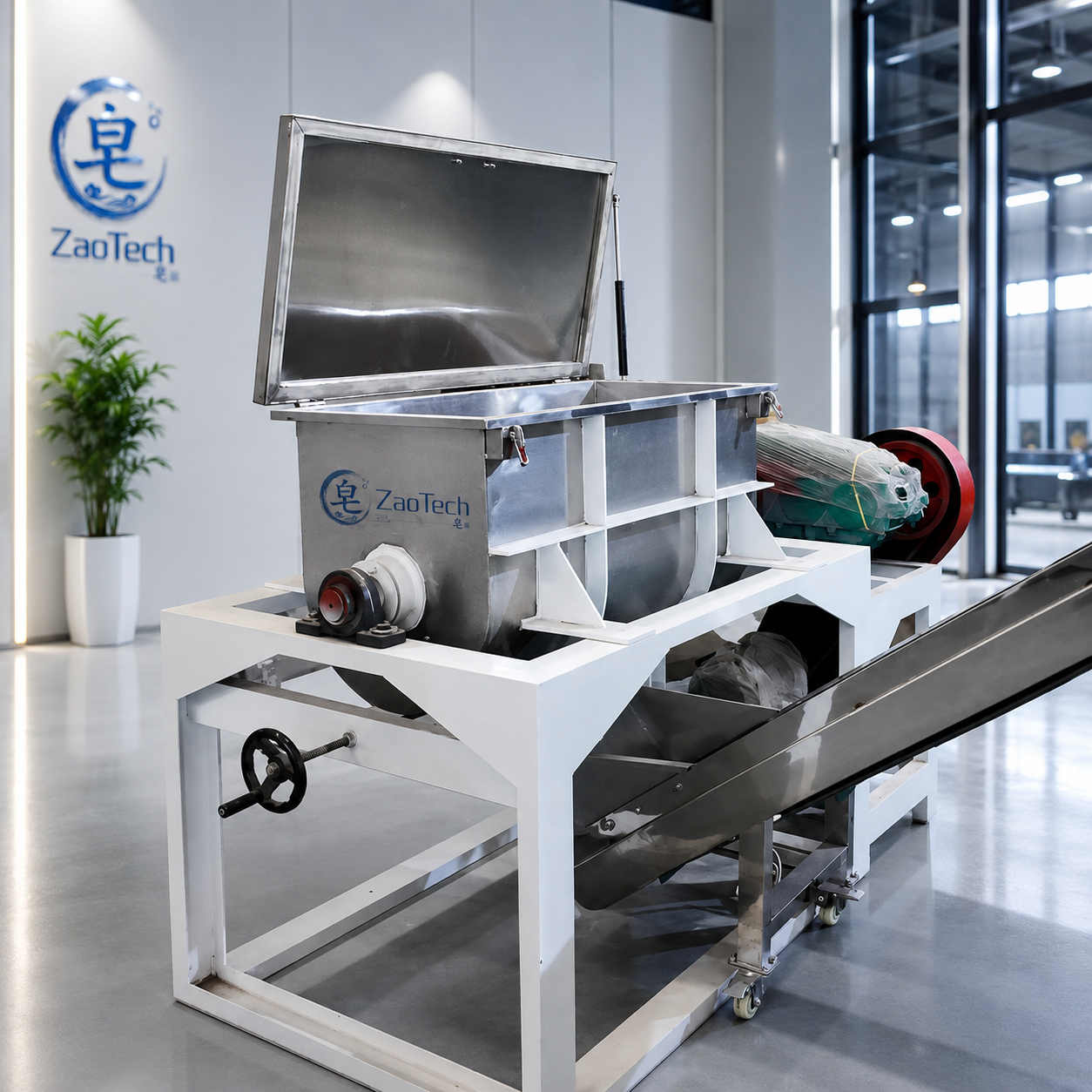

Bath soap is judged by feel and look, so the line is tuned for finish: the mill grinds the mass very fine, the vacuum plodder removes air for a dense, glossy billet, and the soap stamping machine presses detailed logos and decorative shapes. Pigment and perfume are blended evenly in the mixer, so colour and scent are consistent through the whole bar.

ModelCapacity (kg/batch)PowerDimensions (mm)Weight
MX-50502.2 kW1350 × 470 × 910500 kg
MX-1001004 kW1730 × 670 × 1095750 kg
MX-2002005 kW2100 × 880 × 12001000 kg
ModelCapacity (kg/h)Roll Ø / lengthPowerWeight
TR-120100–200120 / 200 mm3 kW380 kg
TR-150300–500150 / 300 mm4 kW600 kg
TR-260500–1000260 / 675 mm7.5 kW1000 kg
TR-4051000–2000405 / 810 mm15 kW5000 kg
ModelCapacity (kg/h)Screw ØPowerWeight
SP-9010090 mm3 kW150 kg
SP-150200150 mm3.5 kW300 kg
SP-180300–500160 mm5.5 kW500 kg
SP-200800–1200200 mm11 kW600 kg
SP-2201000–2000220 mm15 kW650 kg

Scaling the line

Capacity tiers run from 0–300 up to 2000–3000 kg per hour, with MX mixers, TR mills and SP plodders in matching sizes. The same layout serves a boutique soap workshop or a large cosmetic-soap plant, and soap-contact parts are stainless steel.

MaterialRole in the bath bar
Soap noodlesBase soap for the bath bar
Pigment / colour pasteBar colour and shelf appeal
FragranceScent profile of the bath soap
Cosmetic additives (optional)Skin-care and finish properties

Choosing the configuration

We start from your bar formats, monthly volume and the level of finish you sell at, then match the models so the line runs balanced.

What Uzinex provides

• Delivery, installation and commissioning in Romania, with operator training on your own formulation.

• 60-month warranty and nationwide service with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement applications.
