A compact, entry-level laundry-bar line at 200 kg/h: mixer, three-roller mill, simple single-screw plodder and cutter, sized for small businesses.
| Machine | Capacity |
| Soap mixer | 200 kg |
| Three-roller mill | 300 kg |
| Single-screw plodder | 300 kg |
| Cutter | ≤ 300 kg |
| Plodder screw diameter | 180 mm |
| Mill roller diameter | 150 mm |
| Cut bar length | 60–400 mm (adjustable) |
| Line capacity | 200 kg/h (100–300 kg/h range) |
| Power supply | ≈ 25 kW, 380 V, 50 Hz |
| Workshop area | ≥ 50 m² (10 × 5 × 3 m) |
| Operators | 2–4 persons |
| Material | Role in the bar |
| Soap noodles | Base soap and fatty-acid content |
| Pigment | Bar colour and brand identity |
| Fragrance | Scent profile of the laundry bar |
| Fillers (optional) | Cost control and performance |

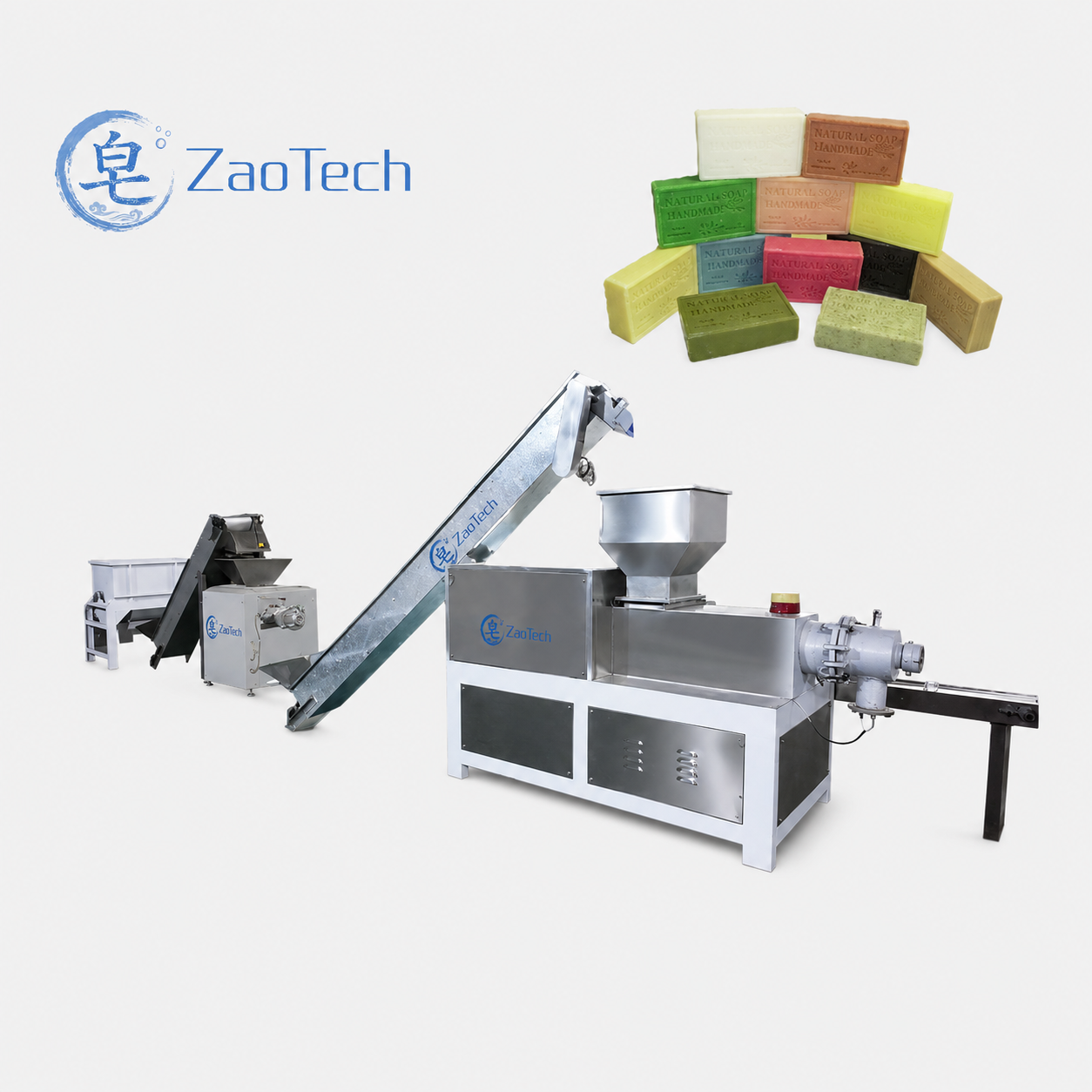

This 200 kg/h small soap making machine is a compact laundry-bar line for businesses entering soap production. It processes soap noodles through mixing, three-roller refining, single-screw plodding, cutting and stamping into finished laundry bars.
Bars can contain 40% to 80% fatty acids, with your own size, weight and embossed pattern. The line draws about 25 kW, fits a workshop of roughly 50 m² and runs with two to four people.
Larger lines use twin-screw vacuum plodders. Here, a single-screw soap plodder with a 180 mm screw keeps the line simple to run and maintain, which suits teams new to soap production, while still extruding a dense bar billet. The mill has 150 mm rolls, and the cutter sets bar length between 60 and 400 mm.
| Machine | Capacity | Power | Dimensions (mm) | Weight |
|---|---|---|---|---|
| Soap mixer | 200 kg | 2.2 kW | 1500 × 1000 × 1150 | 500 kg |
| Three-roller mill | 300 kg | 4 kW | 975 × 820 × 950 | 600 kg |
| Single-screw plodder | 300 kg | 4 kW | 1600 × 1300 × 1450 | 1300 kg |
| Cutter | ≤ 300 kg | – | 1000 × 800 × 1350 | 138 kg |
| Plodder screw diameter | 180 mm | 180 mm | 180 mm | 180 mm |
| Mill roller diameter | 150 mm | 150 mm | 150 mm | 150 mm |
| Cut bar length | 60–400 mm (adjustable) | 60–400 mm (adjustable) | 60–400 mm (adjustable) | 60–400 mm (adjustable) |
| Line capacity | 200 kg/h (100–300 kg/h range) | 200 kg/h (100–300 kg/h range) | 200 kg/h (100–300 kg/h range) | 200 kg/h (100–300 kg/h range) |
| Power supply | ≈ 25 kW, 380 V, 50 Hz | ≈ 25 kW, 380 V, 50 Hz | ≈ 25 kW, 380 V, 50 Hz | ≈ 25 kW, 380 V, 50 Hz |
| Workshop area | ≥ 50 m² (10 × 5 × 3 m) | ≥ 50 m² (10 × 5 × 3 m) | ≥ 50 m² (10 × 5 × 3 m) | ≥ 50 m² (10 × 5 × 3 m) |
| Operators | 2–4 persons | 2–4 persons | 2–4 persons | 2–4 persons |
It is a typical first investment for start-ups and for workshops moving from manual moulding to machine-made laundry bars, at an output a small business can realistically sell.
| Material | Role in the bar |
|---|---|
| Soap noodles | Base soap and fatty-acid content |
| Pigment | Bar colour and brand identity |
| Fragrance | Scent profile of the laundry bar |
| Fillers (optional) | Cost control and performance |
When demand grows past 300 kg per hour, the modular soap making line scales the same process up to 3000 kg per hour.
• Delivery, installation and commissioning in Romania, with operator training on your own formulation.
• 60-month warranty and nationwide service with on-site response in under 24 hours in Romania (24–72 hours in other countries).
• Technical documentation for EU-funded, PNRR and public procurement applications.
