Automatic edge banding machine equipped with two glue pots, able to perform pre-milling procedures…
| Overall dimensions (L×W×H) | 8.650 × 970 × 1.800 mm |
| Total power | 16,5 kW |
| Feed speed | 15 – 23 m/min |
| Electric lifting | 0,37 kW |
| Panel thickness | 10 – 60 mm |
| Minimum panel length | ≥ 120 mm |
| Minimum panel width | ≥ 80 mm |
| Edge band thickness | 0,4 – 3 mm |
| Working pressure | 0,6 MPa |
| Glue pots | 2 independent pots |
| Pre-milling | Included |
| Stage | Description |
| Pre-milling | Levelling of the panel edge before adhesive application |
| Gluing + edge band application | Adhesive dosing from the active pot + pressing of 0,4–3mm edge band |
| End trimming | Automatic cut-off to the exact panel length |
| Coarse + fine trimming | Removal of excess edge band above and below |
| Profiling | Rounding or profiling of the edge band |
| Scraping | Removal of adhesive residue from the panel surface |
| Buffing | Final finishing with a high-speed motor |
The edge banding machine with two glue pots is the automatic edge banding equipment with pre-milling for furniture factories and medium-to-large production workshops that work with two adhesive colours or frequently switch the type of adhesive and need to eliminate the downtime spent cleaning the glue pot between batches. The edge banding machine with two glue pots has a total power of 16,5kW, a feed speed of 15–23m/min, dimensions of 8650×970×1800mm and processes panels with a thickness of 10–60mm, a minimum length of 120mm, a minimum width of 80mm and an edge band of 0,4–3mm.
The edge banding machine with two glue pots performs in an automatic cycle: pre-milling, gluing, edge band application, end trimming, coarse and fine trimming, profiling, scraping and buffing. The two independent glue pots of the edge banding machine with two glue pots allow rapid switching between two types or colours of adhesive without cleaning the active pot, eliminating non-productive time when changing batch. Transport, installation and commissioning included. 60-month warranty. Technical specifications: edge banding machine with two glue pots
| Parameter | Value |
|---|---|
| Overall dimensions (L×W×H) | 8.650 × 970 × 1.800 mm |
| Total power | 16,5 kW |
| Feed speed | 15 – 23 m/min |
| Electric lifting | 0,37 kW |
| Panel thickness | 10 – 60 mm |
| Minimum panel length | ≥ 120 mm |
| Minimum panel width | ≥ 80 mm |
| Edge band thickness | 0,4 – 3 mm |
| Working pressure | 0,6 MPa |
| Glue pots | 2 independent pots |
| Pre-milling | Included |
Integrated automatic stages: edge banding machine with two glue pots
| Stage | Description |
|---|---|
| Pre-milling | Levelling of the panel edge before adhesive application |
| Gluing + edge band application | Adhesive dosing from the active pot + pressing of 0,4–3mm edge band |
| End trimming | Automatic cut-off to the exact panel length |
| Coarse + fine trimming | Removal of excess edge band above and below |
| Profiling | Rounding or profiling of the edge band |
| Scraping | Removal of adhesive residue from the panel surface |
| Buffing | Final finishing with a high-speed motor |
The edge banding machine with two glue pots is configured at quotation according to the range of panels and the types of edge band used. Free technical consultancy available. Advantages of the edge banding machine with two glue pots
• Two independent glue pots: rapid switching between adhesive colours and types without cleaning. The edge banding machine with two glue pots has two independent EVA pots, each with its own heating and dosing system, allowing a single switch to change between two adhesive colours or types. In factories with cabinets in different colours, the edge banding machine with two glue pots eliminates pot cleaning at every batch change, a 30–60 minute operation that halts the line.
• Integrated pre-milling: the edge surface prepared chemically and mechanically for the EVA adhesive. The edge banding machine with two glue pots has a pre-milling unit that levels the panel edge before adhesive application, eliminating residual waviness from cutting and ensuring a perfectly flat, clean surface for optimal adhesion of the EVA adhesive. The integrated pre-milling of the edge banding machine with two glue pots is critical for panels whose edge was previously cut with saws that leave visible marks and for painted MDF panels where adhesive applied to uneven surfaces causes the band to peel off in service.
• Total power 16,5kW: high-speed motor for intensive finishing units. The edge banding machine with two glue pots has an installed power of 16,5kW that drives the intensive trimming, profiling and finishing units with high-speed motors, ensuring consistent trimming and buffing quality across the entire 15–23m/min feed speed. The higher power of the edge banding machine with two glue pots compared with lower-power equipment translates into the quality of the banded surface and into the durability of the cutting tools over large production volumes.
“A high-speed motor for intensive finishing units.”
• Panel thickness 10–60mm and edge band 0,4–3mm with a minimum length of 120mm: short panels included. The edge banding machine with two glue pots processes panels with a minimum length of 120mm, covering the short fronts of kitchens with small modules and small-format partition panels. The full range of thicknesses 10–60mm and edge band 0,4–3mm of the edge banding machine with two glue pots ensures compatibility with all panels in the furniture factory's production, from 18mm chipboard with a thin band to a 60mm worktop with a thick ABS band.
• Feed speed 15–23m/min with 0,37kW electric lifting: high productivity and rapid reconfiguration. The edge banding machine with two glue pots combines a high feed speed with electric height adjustment of the conveyor table, allowing the panel thickness to be changed quickly without manual cranking. At 23m/min, the edge banding machine with two glue pots ensures a consistent throughput of banded panels per 8-hour shift, suitable for factories with steady orders of series furniture.
• Complete 8-stage cycle with profiling and buffing: a finished edge ready for delivery. The edge banding machine with two glue pots finishes the edge in 8 successive stages: pre-milling, gluing, banding, end trimming, coarse trimming, fine trimming, profiling, scraping and buffing. The panel leaves the edge banding machine with two glue pots with a fully finished edge, free of adhesive residue and with a profiled edge: superior quality achieved with no additional manual operations. 60-month UZINEX warranty, nationwide technical support 24–48 hours.
Applications: edge banding machine with two glue pots
Manufacturers of office furniture, commercial furniture and wood products with strict adhesion requirements on panels.

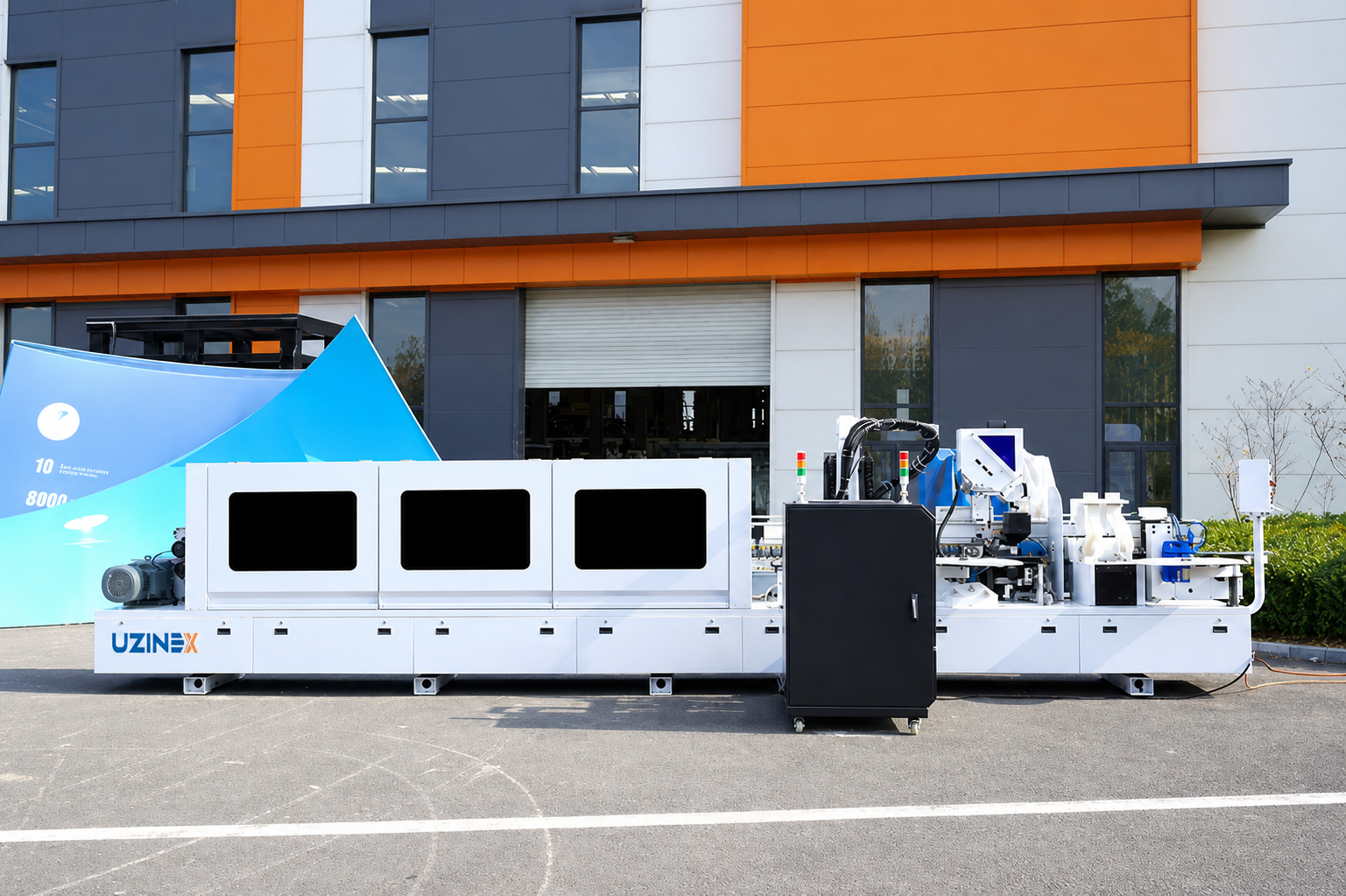

UZINEX edge banding machine with two glue tanks: 2 independent adhesive tanks, integrated pre-milling.
A complete line for the production of panels and fronts.
Made-to-order furniture factories producing mixed batches with different combinations of cabinet and edge colours use the edge banding machine with two glue pots to eliminate downtime when changing the adhesive. A batch of white cabinets with white adhesive is immediately followed by a batch of walnut cabinets with walnut adhesive: the edge banding machine with two glue pots switches between pots in a few seconds, with no cleaning, no cooling and reheating.
Manufacturers of office furniture, commercial furniture and wooden products with strict adhesion requirements on painted MDF or high-gloss melamine panels use the edge banding machine with two glue pots thanks to the pre-milling unit that prepares the edge surface for optimal adhesion of the EVA adhesive. On high-gloss panels, an imperfect edge surface visibly produces a lack of edge adhesion, and pre-milling eliminates this risk. Frequently asked questions about the edge banding machine with two glue pots
Can the two pots of the edge banding machine with two glue pots hold different adhesives at the same time?
Yes. The edge banding machine with two glue pots has two completely independent pots, each with its own heating, temperature control and dosing system. They can simultaneously hold EVA adhesives of different colours or types. Switching between pots is done from the control panel without stopping the line and with no intermediate cleaning. Is the edge banding machine with two glue pots eligible for EU funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects. The edge banding machine with two glue pots can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page. Why UZINEX for the edge banding machine with two glue pots
• Configuration included: UZINEX sets up the edge banding machine with two glue pots with the optimal parameters for the types of edge band and panels in the customer's production.
• Transport, installation and commissioning included: installation, pre-milling calibration and complete operator training.
• 60-month warranty: extended coverage for continuous high-volume furniture production.
• Spare parts in stock: components available quickly in Romania.
• Nationwide technical support 24–48 hours: technicians with nationwide coverage.
• EU-funding eligible: complete technical documentation for PNRR, POR and other active programmes.
UZINEX edge banding machine with two glue pots: 2 independent glue pots, integrated pre-milling, 16,5kW, 15–23m/min, panel 10–60mm / ≥120mm / ≥80mm, edge band 0,4–3mm, 8 automatic stages (pre-milling+gluing+banding+trimming+profiling+scraping+buffing), 0,37kW electric lifting, 8650×970×1800mm, 60-month warranty, transport, installation and commissioning included throughout Romania.
