With an excellent price-to-quality ratio, it is the most affordable edge banding machine for small businesses, offering…
| Motor power | 0,18 kW |
| Total power | 1,2 kW |
| Heating power | 1,0 kW |
| Application speed | 0 – 26 cm/s |
| Edge width | 8 – 50 mm |
| Edge thickness | 0,3 – 3 mm |
| Working pressure | 0,3 – 0,6 MPa |
| Dimensions | 100 × 75 × 100 cm |
| Weight | 120 kg |
| Panel length | Unlimited |
| Standard power supply | 220V, 1 phase, 50Hz |
| Power supply variants | 220V / 3 phase / 60Hz or 380V |
| Edge band | Panel |
| PVC (0,3–3mm) | MDF, chipboard, plywood, solid wood |
| Natural or engineered veneer (0,3–3mm) | MDF, chipboard, plywood, solid wood |
| Melamine (0,3–3mm) | MDF, chipboard, plywood, particleboard |
| Decorative plastic (0,3–3mm) | MDF, chipboard, plywood, composite materials |
| Wide edge band 8–50mm | Special shapes, profiled contours, tables, rounded doors |

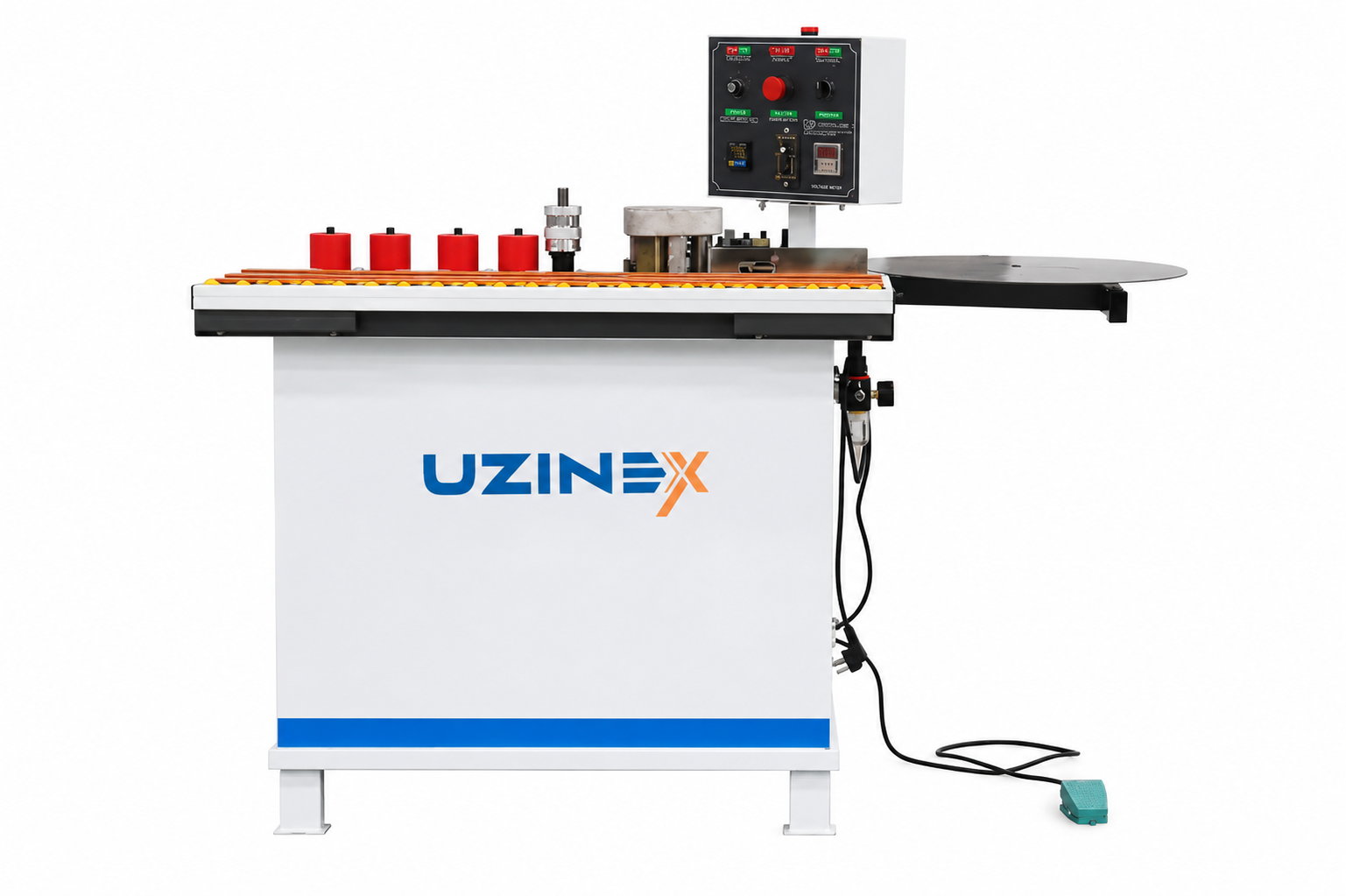

The edge banding machine for cabinets with special shapes is the manual edge banding equipment for joiners and custom furniture makers who apply edge banding to curved contours and irregular shapes whose panel geometry cannot be processed by automatic machines.
The edge banding machine for cabinets with special shapes has a speed of 0–26cm/s, total power of 1,2kW, heating of 1,0kW, edge width of 8–50mm and edge thickness of 0,3–3mm, at a pressure of 0,3–0,6MPa, in 100×75×100cm / 120kg.
The edge banding machine for cabinets with special shapes is available in power supply variants of 220V/1-phase/50Hz (standard), 220V/3-phase/60Hz and 380V, covering all electrical configurations in Romanian and international workshops. There is no restriction on panel length: the edge banding machine for cabinets with special shapes processes panels of any length by moving the equipment along the edge. The adhesive application process does not use a traditional reservoir, ensuring a uniform layer on complex contours. Transport, installation and commissioning included. 60-month warranty. Technical specifications: edge banding machine for cabinets with special shapes
| Parameter | Value |
|---|---|
| Motor power | 0,18 kW |
| Total power | 1,2 kW |
| Heating power | 1,0 kW |
| Application speed | 0 – 26 cm/s |
| Edge width | 8 – 50 mm |
| Edge thickness | 0,3 – 3 mm |
| Working pressure | 0,3 – 0,6 MPa |
| Dimensions | 100 × 75 × 100 cm |
| Weight | 120 kg |
| Panel length | Unlimited |
| Standard power supply | 220V, 1 phase, 50Hz |
| Power supply variants | 220V / 3 phase / 60Hz or 380V |
Compatible materials: edge banding machine for cabinets with special shapes
| Edge band | Panel |
|---|---|
| PVC (0,3–3mm) | MDF, chipboard, plywood, solid wood |
| Natural or engineered veneer (0,3–3mm) | MDF, chipboard, plywood, solid wood |
| Melamine (0,3–3mm) | MDF, chipboard, plywood, particleboard |
| Decorative plastic (0,3–3mm) | MDF, chipboard, plywood, composite materials |
| Wide edge band 8–50mm | Special shapes, profiled contours, tables, rounded doors |
The edge banding machine for cabinets with special shapes is configured at the quotation stage. Free technical consultancy available. Advantages of the edge banding machine for cabinets with special shapes
• Designed for special shapes and curved contours: the only solution for non-straight furniture. The edge banding machine for cabinets with special shapes is designed precisely for panels with geometries that automatic machines with linear transport cannot process: cabinet fronts with curved profiles, round or oval tables, decorative panels with organic shapes, doors with rounded or profiled edges. The edge banding machine for cabinets with special shapes manually follows the panel contour, regardless of shape, applying uniform edge banding along the entire length of the edge, including at small curvature radii.
• Edge width 8–50mm: a wide range for decorative wide edge banding and standard edge banding. The edge banding machine for cabinets with special shapes processes edge banding with a width from 8mm (narrow edge banding for frames and thin profiles) up to 50mm (wide decorative edge banding for tabletops, panelled doors or furniture pieces where the visible edge has an aesthetic role). This wide width range of the edge banding machine for cabinets with special shapes covers both routine edge banding in furniture production and special decorative applications where the wide edge band is a visible design element.
• Unlimited panel length: edge banding of pieces of any size with no format restrictions. The edge banding machine for cabinets with special shapes has no restriction on panel length, because the equipment moves along the edge of the panel, which remains fixed, unlike automatic machines where panels must fit within the maximum length of the conveyor. This feature of the edge banding machine for cabinets with special shapes is essential for edge banding long kitchen worktops (3m+), continuous-body bookcases and oversized wall panels.

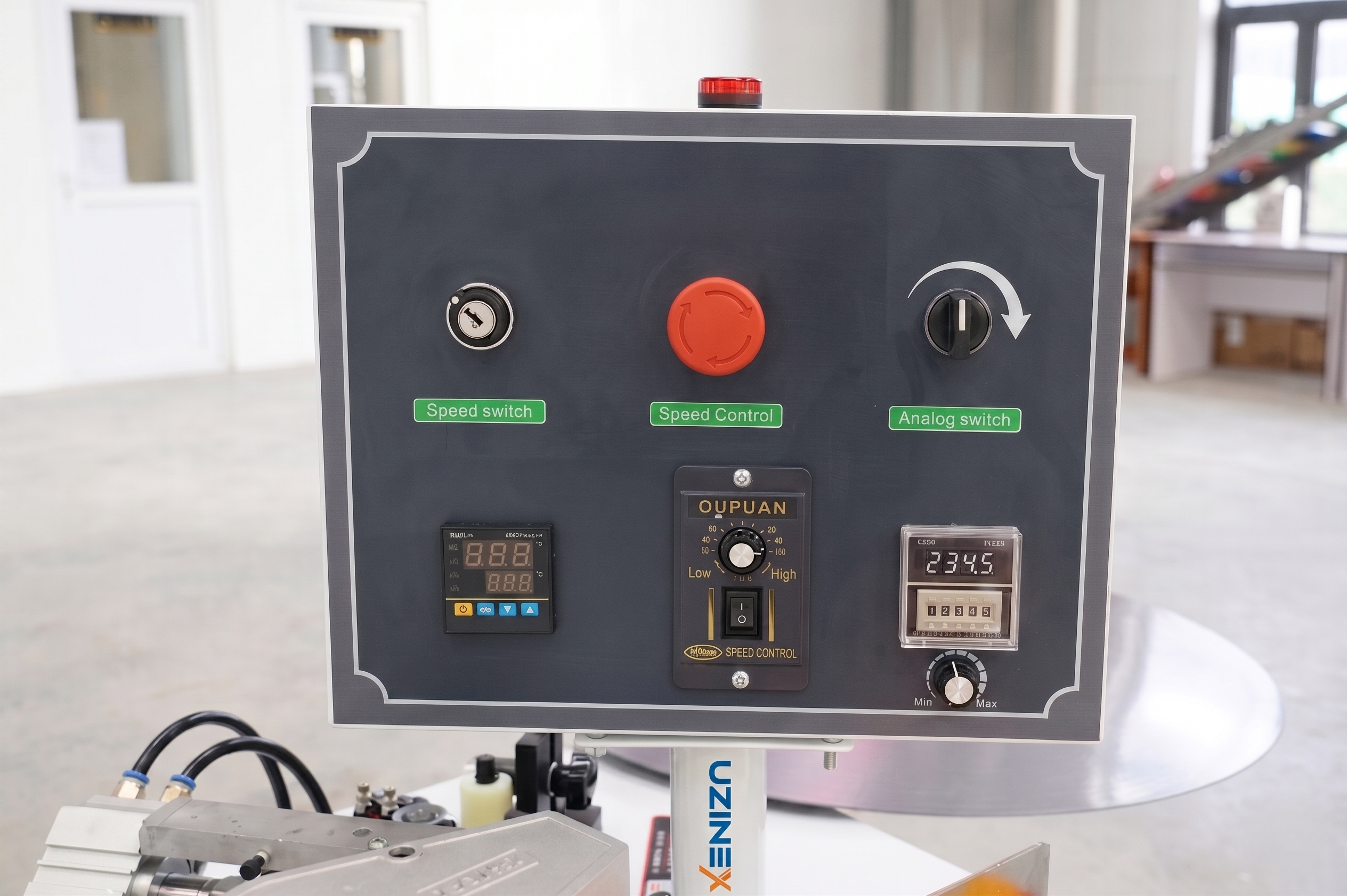

• Adjustable speed 0–26cm/s: full speed control on complex shapes. The edge banding machine for cabinets with special shapes allows the application speed to be adjusted between 0 and 26cm/s, enabling the operator to slow down at angles, corners and small curvature radii and to speed up on straight sections. This flexibility of the edge banding machine for cabinets with special shapes ensures uniform adhesive application and complete pressing of the edge band over the entire panel geometry, regardless of complexity.
“The edge banding machine for cabinets with special shapes allows the application speed to be adjusted between 0 and 26 cm/s, letting the operator slow down at corners.”

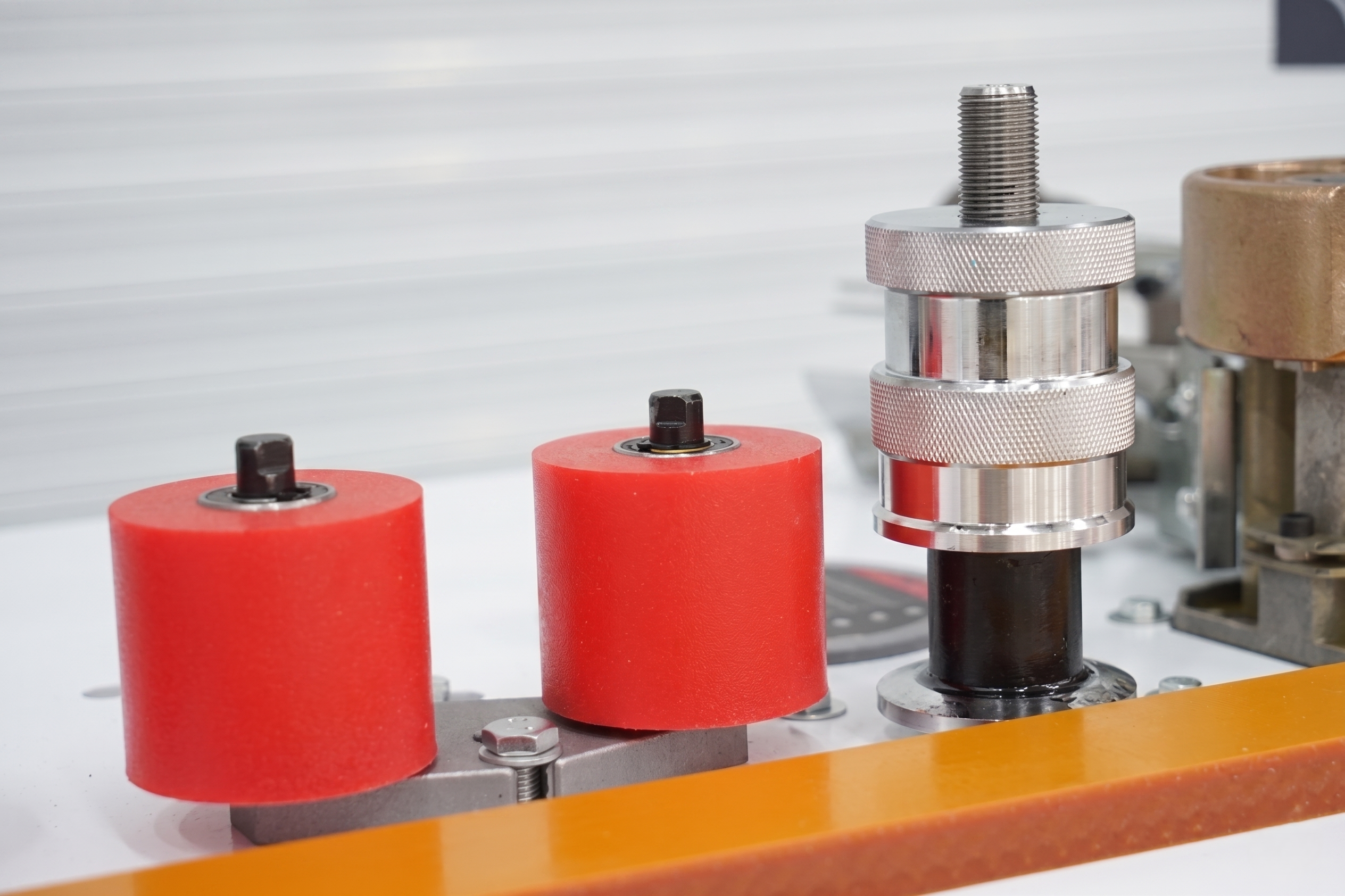

• Adhesive application system without a traditional reservoir: a uniform layer on complex contours. The edge banding machine for cabinets with special shapes uses an adhesive application system that ensures a uniform layer on curved contours and angles, eliminating the problems of traditional reservoirs that apply adhesive unevenly when the direction changes. The uniform adhesive of the edge banding machine for cabinets with special shapes is critical for the quality of edge band adhesion in curvature zones where the contact pressure varies and inconsistent dosing produces local detachment after a short time.
• Available in 220V/50Hz, 220V/60Hz and 380V: compatible with any electrical configuration of the workshop. The edge banding machine for cabinets with special shapes can be ordered in the power supply variant suited to the installation in the workshop or production space, including 380V for workshops with a three-phase panel and 220V/60Hz for use on generators or in spaces with a different mains frequency. This flexibility of the edge banding machine for cabinets with special shapes eliminates the additional cost of an adaptation transformer. 60-month UZINEX warranty, national technical support within 24–48 hours.
Custom furniture manufacturers and joinery workshops that make wardrobes with profiled fronts.
Application speed 0 – 26 cm/s
Dimensions 100 × 75 × 100 cm
Applications: edge banding machine for cabinets with special shapes
Custom furniture makers and joinery workshops that build wardrobes with profiled fronts, bookcases with special shapes, tables with rounded contours and unconventional design furniture use the edge banding machine for cabinets with special shapes as the only viable method for edge banding pieces with geometries that cannot be processed on automatic machines. The ability of the edge banding machine for cabinets with special shapes to follow any contour makes it indispensable equipment for workshops that produce made-to-order furniture with special shapes for premium clients.
Furniture restoration workshops use the edge banding machine for cabinets with special shapes to replace damaged edge banding on old furniture pieces with special shapes, where precision and compatibility with the original panel geometry are critical. The ability of the edge banding machine for cabinets with special shapes to apply wide edge banding of up to 50mm also covers the restoration of period furniture with widened decorative edge banding, characteristic of classic and art deco styles. Frequently asked questions about the edge banding machine for cabinets with special shapes
Can the edge banding machine for cabinets with special shapes apply edge banding to concave surfaces?
The edge banding machine for cabinets with special shapes is optimised for convex and straight contours. Concave surfaces with very small radii may require a specialised accessory or a multi-step approach. At the quotation stage, UZINEX analyses the specific geometry of the customer's panels and recommends the appropriate technical solution. Is the edge banding machine for cabinets with special shapes eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects. The edge banding machine for cabinets with special shapes can be listed in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page. Why UZINEX for the edge banding machine for cabinets with special shapes
• Configuration included: UZINEX sets up the edge banding machine for cabinets with special shapes with the optimal parameters for the edge band types and geometries in the customer's production.
• Transport, installation and commissioning included: installation, calibration and operator training.
• 60-month warranty: extended coverage for custom furniture production.
• Spare parts in stock: components quickly available in Romania.
• National technical support within 24–48 hours: technicians with nationwide coverage.
• Eligible for European funding: complete technical documentation for PNRR, POR and other active programmes.
Edge banding machine for cabinets with special shapes UZINEX: curved contours and special shapes, speed 0–26cm/s, edge band 8–50mm width / 0,3–3mm thickness, panel with no length restriction, total power 1,2kW / heating 1,0kW / motor 0,18kW, pressure 0,3–0,6MPa, 100×75×100cm, 120kg, 220V/50Hz (variants 220V/60Hz and 380V), PVC/veneer/melamine/plastic edge band, 60-month warranty, transport, installation and commissioning included throughout Romania.
