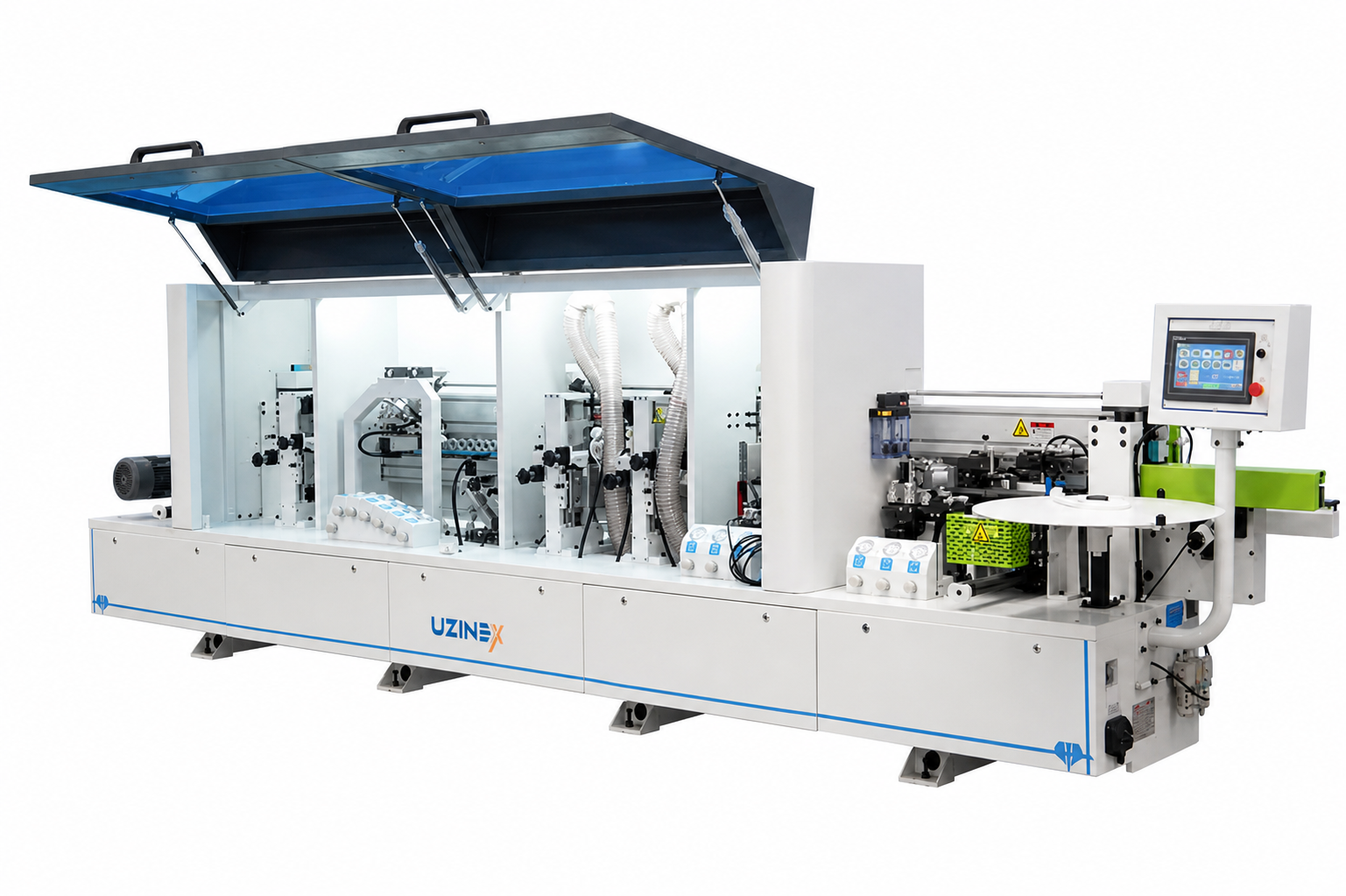

Automatic edge banding machine ideal for wooden furniture, with advanced profile-tracking technology and…
| Overall dimensions (L×W×H) | 5.840 × 970 × 1.800 mm |
| Total power | 12 kW |
| Feed speed | 15 – 23 m/min |
| Electric lifting | 0,37 kW |
| Panel thickness | 10 – 60 mm |
| Minimum panel length | ≥ 120 mm |
| Minimum panel width | ≥ 80 mm |
| Edge band thickness | 0,4 – 3 mm |
| Working pressure | 0,6 MPa |
| Cylinders | WSN |
| Solenoid valves | EASUN |
| Mains compatibility | 50 Hz / 60 Hz |
| Profile tracking | Automatic rounding of edge band corners |
| Stage | Description |
| Adhesive application | Uniform dosing via EASUN valves onto the panel edge |
| Edge banding | Application and pressing of 0,4–3mm edge band via WSN cylinders |
| End trimming | Automatic cut-off to the exact panel length |
| Coarse + fine trimming | Removal of excess edge band top and bottom |
| Profile tracking: corner rounding | Automatic profiling of the edge band, including at corners |
| Scraping | Removal of adhesive residue from the panel surface |
| Buffing | Final finishing with a touch-smooth surface |
The fully automatic edge banding machine with profile tracking is the edge banding equipment for wooden furniture manufacturers who need precise rounding of the edge band corners and a smooth, touch-safe finish on panels with straight and rounded edges. The fully automatic edge banding machine with profile tracking has a total power of 12kW, a feed speed of 15–23m/min, dimensions of 5840×970×1800mm and processes panels with a thickness of 10–60mm, a minimum length of 120mm, a minimum width of 80mm and an edge band of 0,4–3mm. The WSN cylinders and EASUN solenoid valves ensure uniform, stable adhesive application across the entire surface of the edge band.
The fully automatic edge banding machine with profile tracking performs in a fully automatic cycle: adhesive application, edge banding, end trimming, coarse and fine trimming, profile tracking with corner rounding, scraping and buffing. Compatible with both 50Hz and 60Hz frequencies, the fully automatic edge banding machine with profile tracking can be used in any production environment. Transport, installation and commissioning included. 60-month warranty. Technical specifications: fully automatic edge banding machine with profile tracking
| Parameter | Value |
|---|---|
| Overall dimensions (L×W×H) | 5.840 × 970 × 1.800 mm |
| Total power | 12 kW |
| Feed speed | 15 – 23 m/min |
| Electric lifting | 0,37 kW |
| Panel thickness | 10 – 60 mm |
| Minimum panel length | ≥ 120 mm |
| Minimum panel width | ≥ 80 mm |
| Edge band thickness | 0,4 – 3 mm |
| Working pressure | 0,6 MPa |
| Cylinders | WSN |
| Solenoid valves | EASUN |
| Mains compatibility | 50 Hz / 60 Hz |
| Profile tracking | Automatic rounding of edge band corners |
Integrated automatic stages: fully automatic edge banding machine with profile tracking
| Stage | Description |
|---|---|
| Adhesive application | Uniform dosing via EASUN valves onto the panel edge |
| Edge banding | Application and pressing of 0,4–3mm edge band via WSN cylinders |
| End trimming | Automatic cut-off to the exact panel length |
| Coarse + fine trimming | Removal of excess edge band top and bottom |
| Profile tracking: corner rounding | Automatic profiling of the edge band, including at corners |
| Scraping | Removal of adhesive residue from the panel surface |
| Buffing | Final finishing with a touch-smooth surface |
The fully automatic edge banding machine with profile tracking is configured at quotation. Free technical consultancy available. Advantages of the fully automatic edge banding machine with profile tracking
• Profile tracking with automatic corner rounding: a safe, attractive edge with no manual operations. The fully automatic edge banding machine with profile tracking has a profile-tracking unit that automatically rounds the upper and lower edge of the band, eliminating the sharp corners produced by standard straight trimming. The automatic rounding of the edge band corners by the fully automatic edge banding machine with profile tracking is critical for furniture intended for homes with children (sharp corners are an injury risk), for ergonomically certified office furniture and for premium-finish solid-wood furniture.
• WSN cylinders and EASUN solenoid valves: uniform, stable adhesive application. The fully automatic edge banding machine with profile tracking uses WSN cylinders for precise, consistent pressing of the band onto the adhesive-coated panel and EASUN solenoid valves for uniform dosing of the EVA adhesive along the entire length of the band, including at the ends and at the transition to the corners. The quality of the pneumatic components of the fully automatic edge banding machine with profile tracking guarantees the reproducibility of bonding from panel to panel across the whole production run, with no dosing variations that would lead to local detachment of the band in service.
• 50Hz and 60Hz compatibility: usable in any production environment in Romania and for export. The fully automatic edge banding machine with profile tracking is designed to operate both at a mains frequency of 50Hz (the European and Romanian standard) and at 60Hz (the North American standard and some industrial areas with their own generators). This compatibility of the fully automatic edge banding machine with profile tracking makes it suitable for factories with mixed power systems and for manufacturers exporting their output to markets with different frequencies.
• 12kW power with a 15–23m/min speed: a productivity-to-energy balance for medium volumes. The fully automatic edge banding machine with profile tracking has a 12kW power level optimised for medium-series production, providing finishing motors powerful enough for the quality of the banded surface at speeds up to 23m/min, with a balanced energy consumption for workshops and factories producing 50–200 panels per shift. The fully automatic edge banding machine with profile tracking represents the balance between capacity and operating cost for custom and small-to-medium series furniture manufacturers.
“12 kW power at 15–23 m/min speed: a balance of productivity and energy consumption for medium volumes.”
• Panel thickness 10–60mm and edge band 0,4–3mm: full compatibility with wooden furniture production. The fully automatic edge banding machine with profile tracking processes the entire range of panels used in producing solid-wood and composite furniture: from thin 10mm panels for decorative shelves with a 0,4mm PVC band to thick 60mm panels for kitchen worktops with a 2–3mm ABS band. The full range of materials accepted by the fully automatic edge banding machine with profile tracking eliminates the need for separate equipment for different formats or thicknesses.
• Fully automatic cycle: a finished edge in 7 stages with no manual intervention. The fully automatic edge banding machine with profile tracking produces a fully finished edge at the output: applied with uniform adhesive via the EASUN valves, pressed by the WSN cylinders, trimmed to the exact panel length, fine-trimmed top and bottom, with corners rounded by profile tracking, free of adhesive residue (scraped) and buffed. The fully automatic edge banding machine with profile tracking eliminates all manual edge-finishing operations from the production process. 60-month UZINEX warranty, nationwide technical support 24–48 hours.
Applications: fully automatic edge banding machine with profile tracking
Solid-wood furniture manufacturers (living rooms, bedrooms, children's furniture and premium furniture) use the fully automatic edge banding machine with profile tracking for the superior-quality edge finish with corner rounding that sets the product apart from standard furniture with a straight edge. The automatic rounding of the edge band corners by the fully automatic edge banding machine with profile tracking is an aesthetic and safety requirement for furniture intended for children's rooms and for products certified for sale in European retail.
Manufacturers of solid wood furniture: living rooms, bedrooms, children's furniture and premium furniture.
Factories of office furniture and commercial furniture (receptions, waiting areas.
What rounding radius does the profile-tracking unit of the fully automatic edge banding machine with profile tracking produce?
Office furniture and commercial furniture factories (reception desks, waiting areas, hotel furniture) use the fully automatic edge banding machine with profile tracking thanks to the quality and safety of the edge with rounded corners, which meets the ergonomic requirements of professional furniture and the safety standards for public spaces. The 50Hz and 60Hz compatibility of the fully automatic edge banding machine with profile tracking also makes it suitable for manufacturers supplying international markets. Frequently asked questions about the fully automatic edge banding machine with profile tracking
What rounding radius does the profile-tracking unit of the fully automatic edge banding machine with profile tracking produce?
The rounding radius of the edge band corners is set via the adjustment of the profile-tracking unit of the fully automatic edge banding machine with profile tracking and depends on the thickness of the applied band. At installation, UZINEX provides the recommended settings for the edge band thicknesses in the specific production and delivers the training for adjusting the radius. Is the fully automatic edge banding machine with profile tracking eligible for EU funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects. The fully automatic edge banding machine with profile tracking can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page. Why UZINEX for the fully automatic edge banding machine with profile tracking
• Configuration included: UZINEX sets up the fully automatic edge banding machine with profile tracking with the optimal parameters for the customer's range of panels and edge bands, including the corner rounding radius.
• Transport, installation and commissioning included: installation, calibration of the profile-tracking unit and operator training.
• 60-month warranty: extended coverage for series production of wooden furniture.
• Spare parts in stock: WSN, EASUN and other components available quickly in Romania.
• Nationwide technical support 24–48 hours: technicians with nationwide coverage.
• EU-funding eligible: complete technical documentation for PNRR, POR and other active programmes.
UZINEX fully automatic edge banding machine with profile tracking: profile tracking with corner rounding, 12kW, 15–23m/min, panel 10–60mm / ≥120mm / ≥80mm, edge band 0,4–3mm, WSN cylinders, EASUN valves, 50Hz/60Hz, 7 automatic stages (gluing+banding+trimming+adjusting+profiling+scraping+buffing), 0,37kW electric lifting, 5840×970×1800mm, 60-month warranty, transport, installation and commissioning included throughout Romania.
